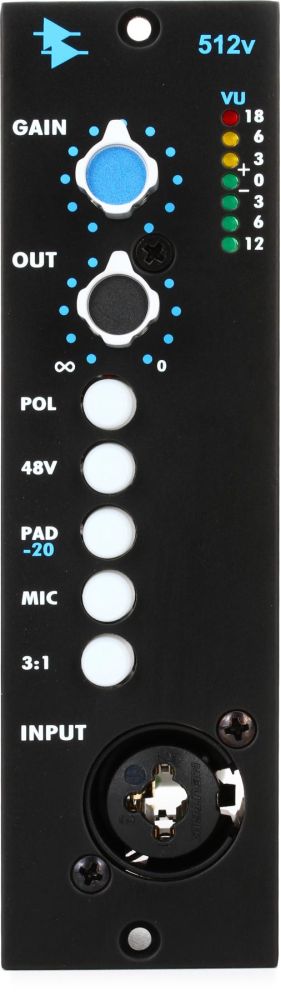

512V Preamp

The API 512v is a versatile and highly regarded microphone preamplifier that builds upon the legacy of the classic 512c, adding key features that modern engineers demand. Housed in a single-slot 500 series module, the 512v delivers the iconic API sound—punchy, warm, and rich in harmonics—while providing expanded control for fine-tuning levels and tone. It is a true studio workhorse, excelling on virtually any source, from vocals and acoustic instruments to drums and electric guitars. The added features make it even easier to integrate into a digital recording workflow, where precise level management is critical.

At its core, the 512v utilizes the same traditional circuit as its predecessors, featuring the legendary API 2520 discrete op-amp and a proprietary output transformer. These components are responsible for its signature sound and impressive headroom. The most significant addition to the 512v is a variable output level control. This allows you to drive the preamp's gain stage harder to achieve rich analog saturation and harmonic coloration, while simultaneously attenuating the output signal to prevent clipping your converters. This "gain staging" flexibility opens up a vast palette of tonal possibilities. The module also features a 3:1 output transformer tap selection, which changes the character of the output stage for even more sonic variety. Standard features include up to 65dB of gain, 48V phantom power, a 20dB pad, and a front-panel combination XLR/TRS input for mic or line/instrument signals.

Features

• Classic API microphone preamp with expanded features.
• Variable output level control for precise gain staging.
• Features the renowned API 2520 discrete op-amp and proprietary transformer.
• Switchable 3:1 output transformer tap for tonal variation.
• Up to 65dB of clean gain.
• Front-panel combination XLR/TRS input for Mic, Line, or Instrument signals.
• Switches for 48V Phantom Power, 20dB Pad, and Polarity Reverse.
• 8-segment LED meter for VU monitoring.
