Pictures of your builds!
-
- KVRer
- 14 posts since 27 Jul, 2024
On top this is behringer ada8000 preamp
Second is summing mixer i made from Neumann v-457 card. Everything is inside a rack, there is noth much to see from the front.
Third is gyraph audio gssl compressor
Fourth is gyraph audio dual headphone amp
Second is summing mixer i made from Neumann v-457 card. Everything is inside a rack, there is noth much to see from the front.
Third is gyraph audio gssl compressor
Fourth is gyraph audio dual headphone amp
You do not have the required permissions to view the files attached to this post.
-
- KVRer
- 14 posts since 27 Jul, 2024
Again, if someone is interested in building some of thestuff i have build, i will be very happy to share all of my project files with you.
But everything i have made can be find on the net.
But everything i have made can be find on the net.
-
- KVRAF
- 13119 posts since 7 May, 2006 from Southern California

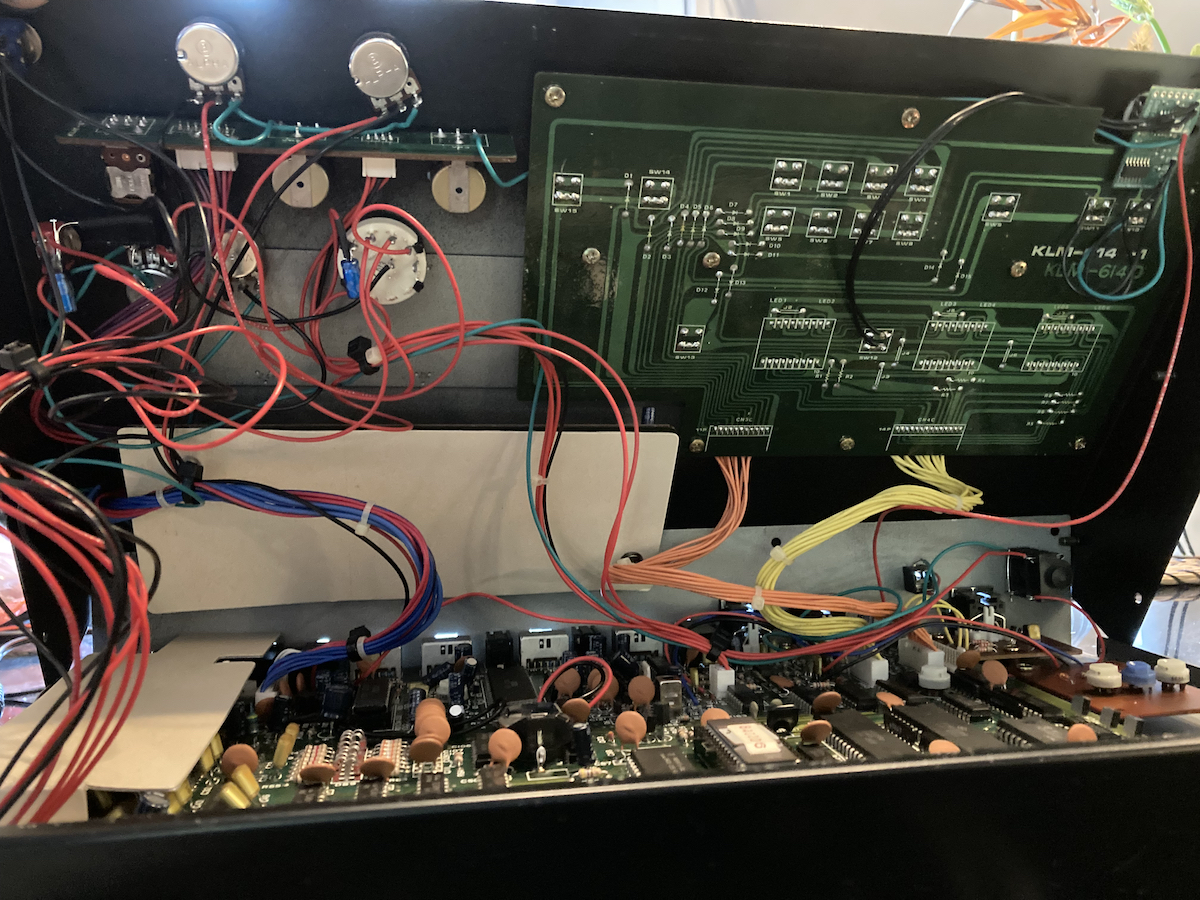

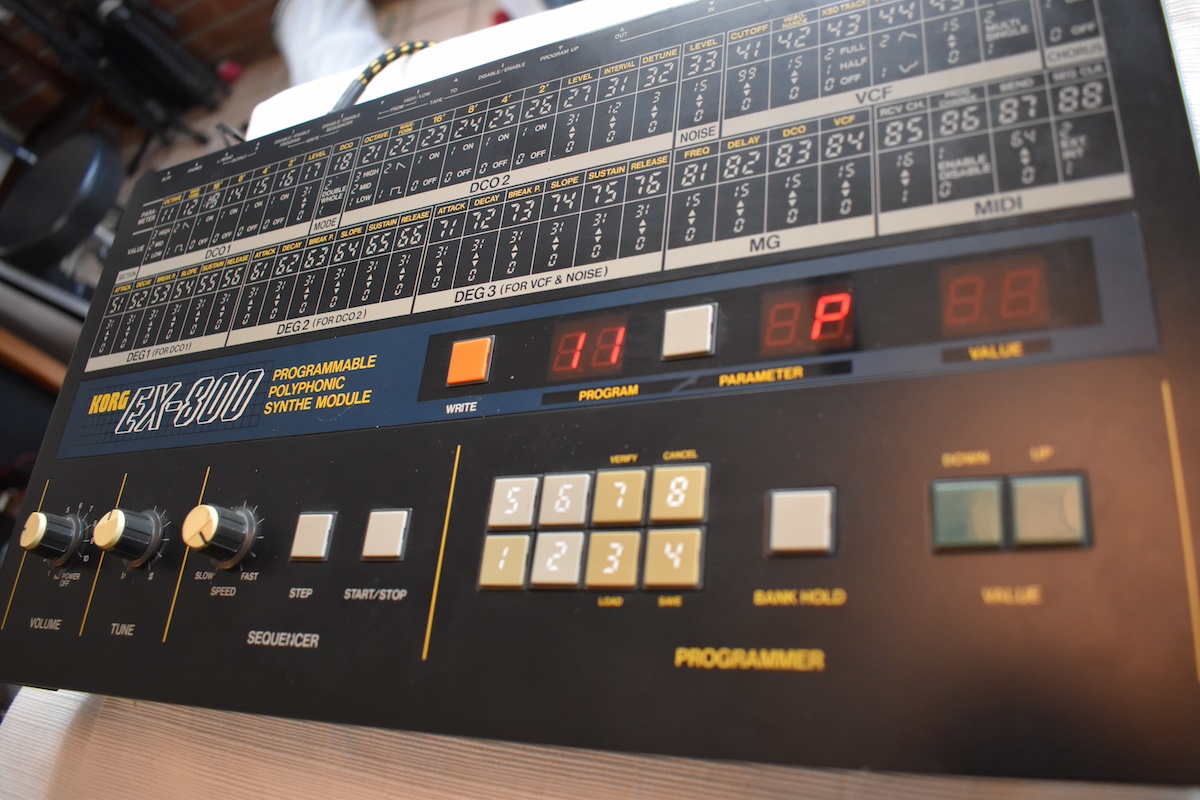

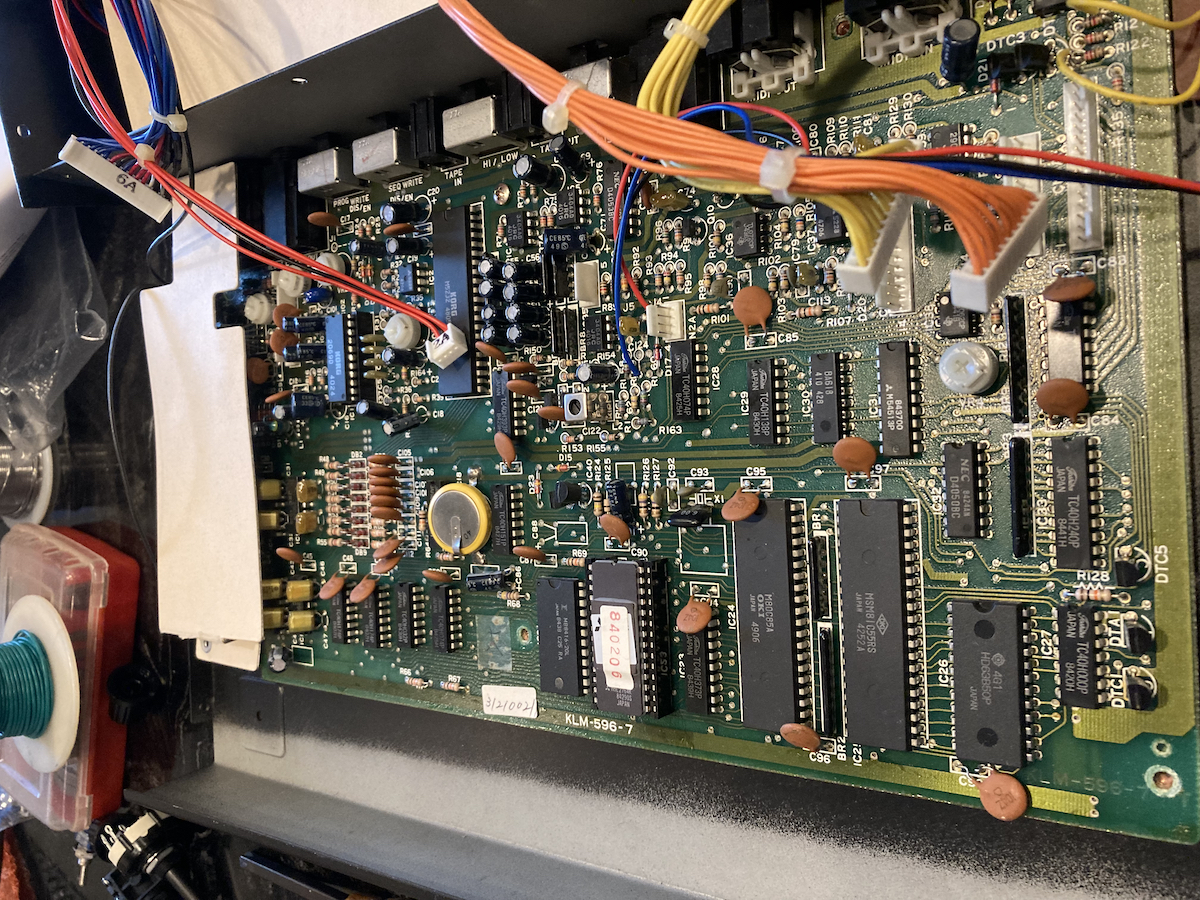

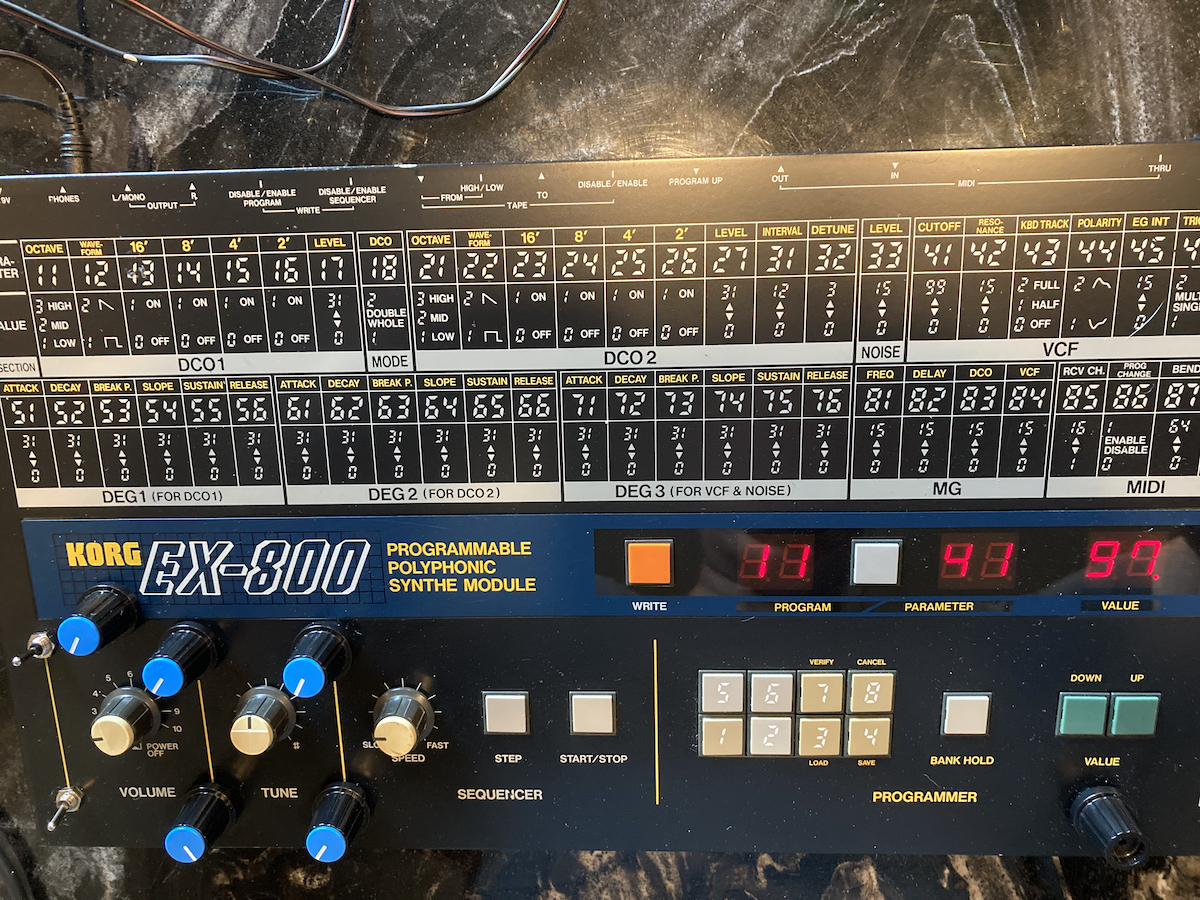

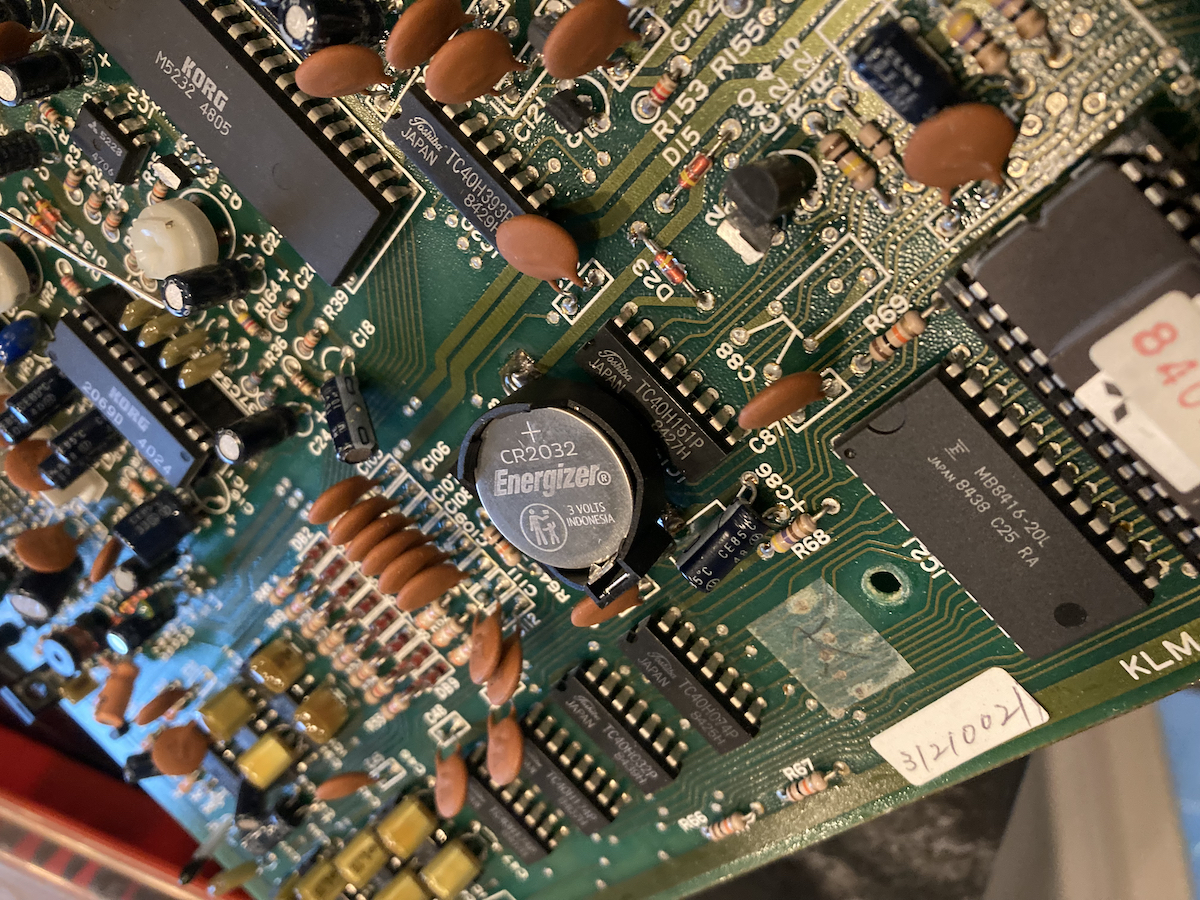

Here are some images of the Korg EX800 mods I was talking about in another thread:

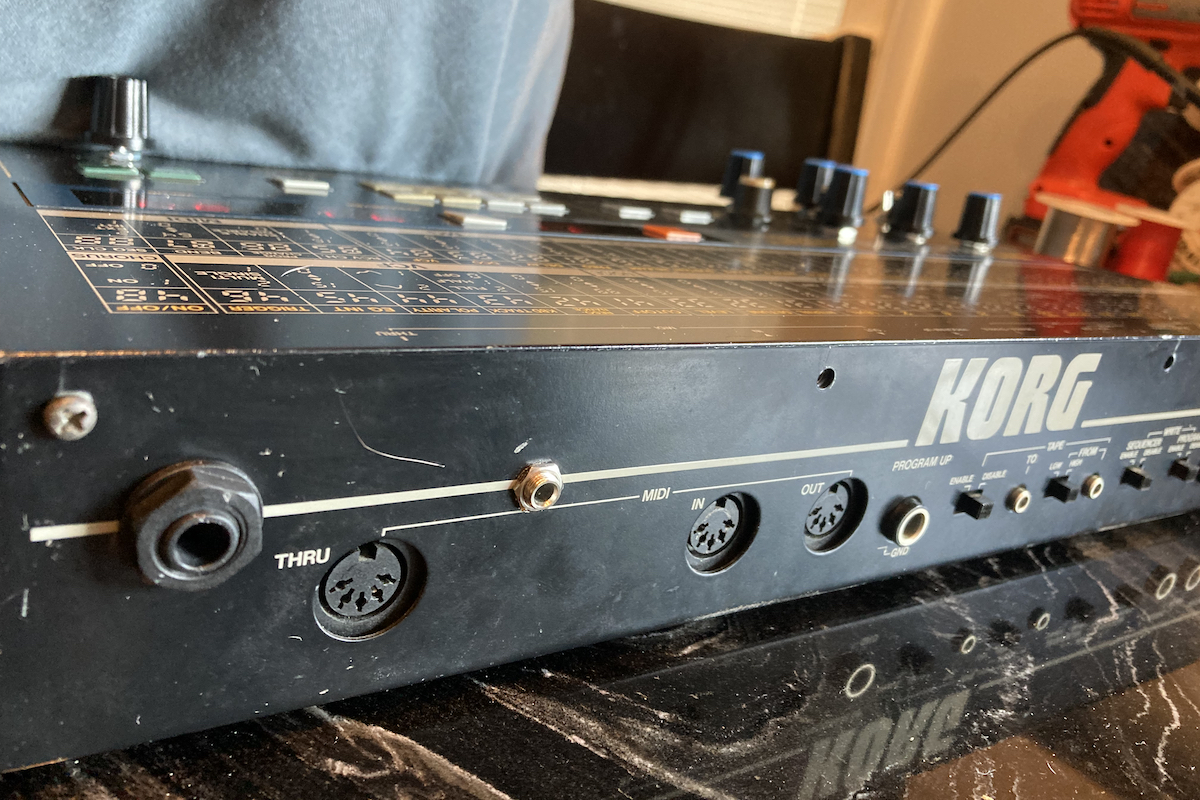

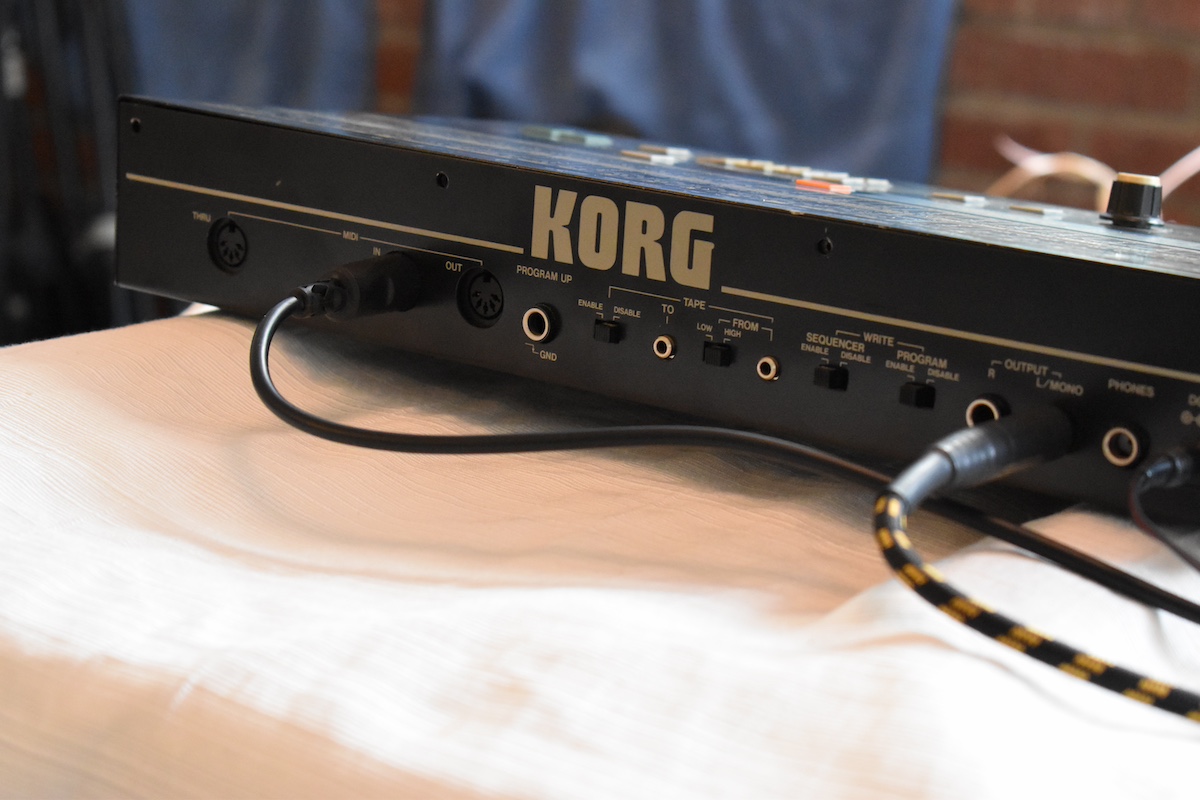

Here are some before shots:
Here are some before shots:
-
- addled muppet weed
- 111245 posts since 26 Jan, 2003 from through the looking glass
nice work!
-
- KVRAF
- 4801 posts since 1 Aug, 2005 from Warszawa, Poland
-
- addled muppet weed
- 111245 posts since 26 Jan, 2003 from through the looking glass
-
- KVRist
- 140 posts since 13 Mar, 2004 from USA
DSS-1 replace the floppy with USB stick - main trick is to set the read i/o speed to the same as floppy because of the way the system reads the file serially... now the entire collection of all known DSS patches are available on the USB stick
You do not have the required permissions to view the files attached to this post.
Glenn
-
- KVRist
- 140 posts since 13 Mar, 2004 from USA
fixing the DW-8000 - the thermistor blew out and took a timing cap with it... so pitch drift... finding the thermistor to match was the hardest part as the schematics only showed it as TR-1 LOL... after much research, found a place which sold a compatible one for $20 + $20 shipping (Malaysia). still slight need to tweak the pitch dial about 30 cents, but almost perfect.
You do not have the required permissions to view the files attached to this post.
Glenn
-
- KVRist
- 140 posts since 13 Mar, 2004 from USA
lastly a Crumar Stratus... mainly needed cleaning... still, a magnificent bit of quality work they did wrapping up the wiring harness, quality components. funky to play...
You do not have the required permissions to view the files attached to this post.
Glenn
-
- KVRAF
- 16726 posts since 13 Oct, 2009
Can you give more details, sources? I have a DSS-1 with a bad floppy. I'd like to fix it before I decide to sell/keep. Amazing filter.gullfo wrote: Wed Jun 25, 2025 7:15 pm DSS-1 replace the floppy with USB stick - main trick is to set the read i/o speed to the same as floppy because of the way the system reads the file serially... now the entire collection of all known DSS patches are available on the USB stick
-
- KVRist
- 140 posts since 13 Mar, 2004 from USA
check this out: "Gotek USB floppy emulator drive (FlashFloppy HxC Compatible)"
https://www.korgforums.com/forum/phpBB3 ... hp?t=66676
https://torlus.com/floppy/forum/viewfor ... dfe1719dad
i bought the HxC package (at the time about $45)
https://www.korgforums.com/forum/phpBB3 ... hp?t=66676
https://torlus.com/floppy/forum/viewfor ... dfe1719dad
i bought the HxC package (at the time about $45)
Glenn
