Blue Cat Audio wrote: ↑Thu Feb 06, 2020 7:33 am
BTW feel free to share your experience and some more screenshots of your custom skins!

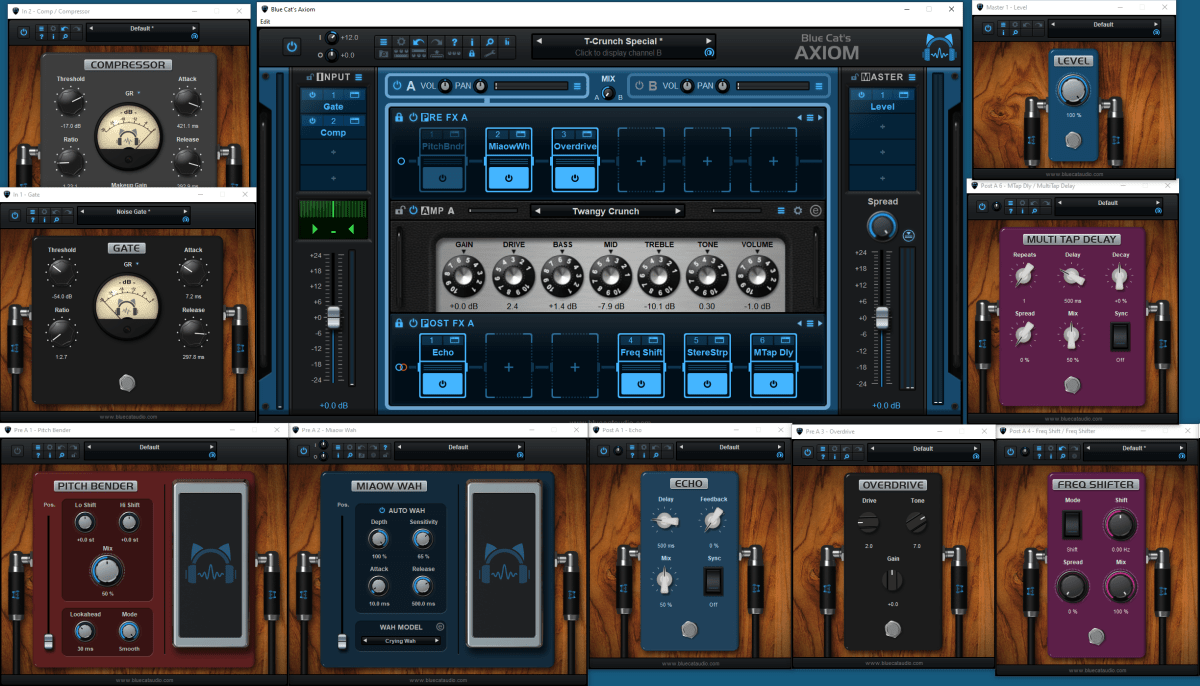

Sure... here some examples
Graphic are .png files located in a subdirectory located under .../Skins/Racks/Graphics/Background directory of Axiom. (btw this is Destructor customizing so I guess it could work similar with the Destructor plugin alone.)
The skins are .sub files that look like that :
You can see the path to the custom .png graphic files in the screen copy above. There are two files : 1 header and 1 body.
Just copy one of the standard .sub file to make your own ones in notepad. You can change the body / header pics, choose knobs from the Axiom collection and adjust their positions. New .sub file will be accessible in the 'Select UI style' of the filter/destruction racks - but you have to re-start Axiom after you create new files. There are separate directories for Filters and Destruction racks .sub files (and the best is to create your own sub-dir next to the existing ones)
Note that you can make graphics bigger than the "standard" Axiom dimensions (i.e. the existing AXIOM graphic files for header and body). If the body file is higher then the Destruction container will adapt in size, which is cool (not sure it works if the pic is wider). So you can use an full amp faceplate image if you want - like in Amplitude4 for example. The tricky thing in this case is to adjust the knob placement to fit with the image.
