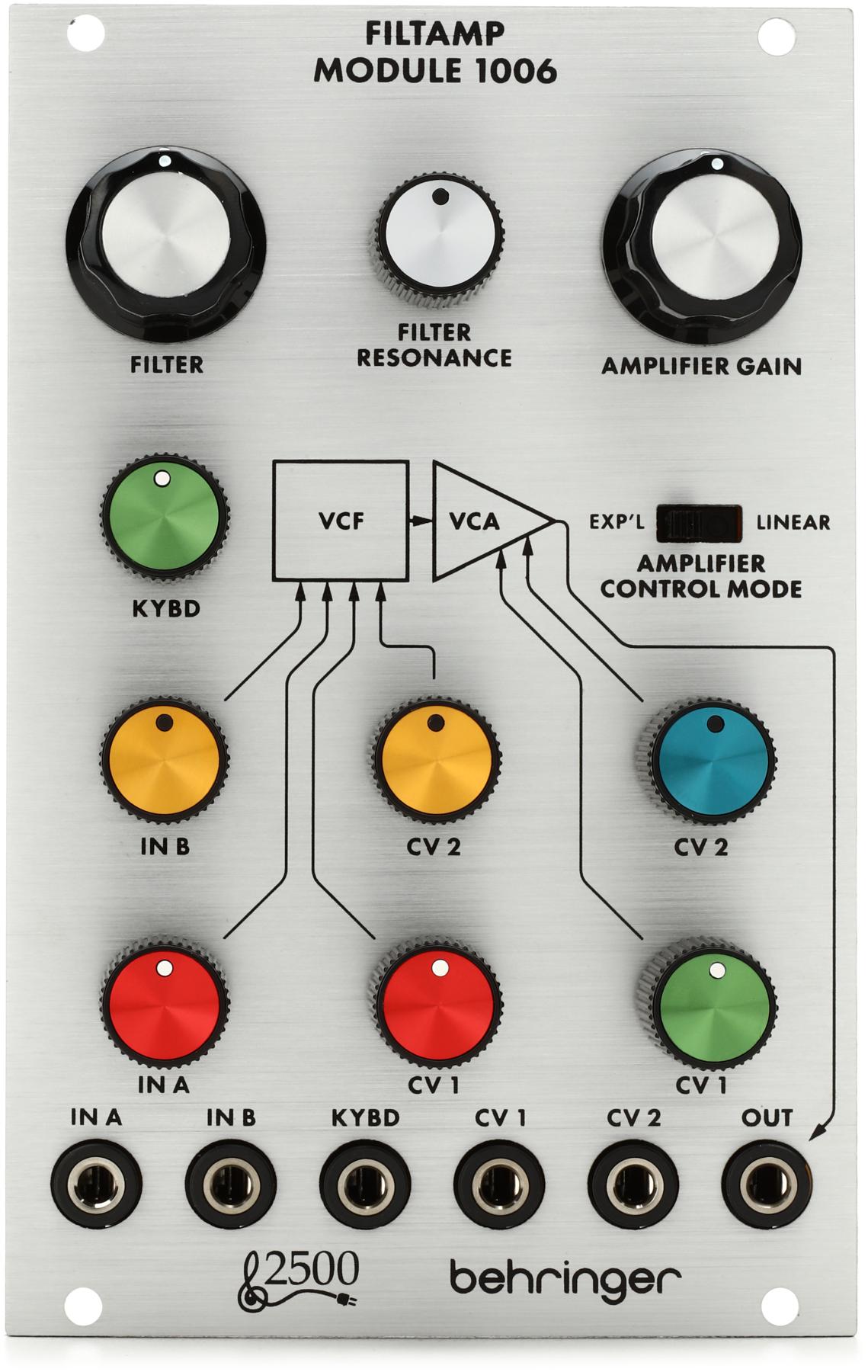

1006 Filtamp 24 dB Low-Pass VCF and VCA

The Behringer 1006 Filtamp is a classic analog filter and amplifier combination, faithfully recreating the circuitry of the ARP 2500's 1006 module. This Eurorack module combines two of the most essential tools in subtractive synthesis: a resonant 24 dB/octave low-pass voltage-controlled filter (VCF) and a voltage-controlled amplifier (VCA). This pairing allows for seamless integration of tonal and volume control, making it a highly efficient and musical component for shaping and animating sounds within your modular system.

The VCF section is a resonant low-pass filter with a steep 24 dB/octave slope, perfect for creating warm, fat bass sounds, smooth filtering sweeps, and squelchy, acidic textures. It features manual controls for cutoff frequency and resonance, along with two CV inputs for external modulation of the filter frequency. The VCA section provides clean, responsive control over the audio signal's amplitude, with both linear and exponential control inputs for dynamic shaping with envelopes or LFOs. The module's internal routing normals the output of the VCF directly into the input of the VCA, simplifying patching for a standard synth voice architecture, while still allowing the two sections to be used independently if desired.

Features

• Authentic recreation of the vintage ARP 2500 series 1006 Filtamp module.
• Combines a 24 dB/octave low-pass VCF and a VCA in a single unit.
• Resonant filter with manual control over frequency and resonance.
• Two CV inputs for modulating the filter's cutoff frequency.
• VCA with both linear and exponential control inputs for amplitude shaping.
• Internal connection from VCF output to VCA input for simplified patching.
• All-analog signal path for classic, warm sound characteristics.
• Eurorack ready for use in any modern modular system.
