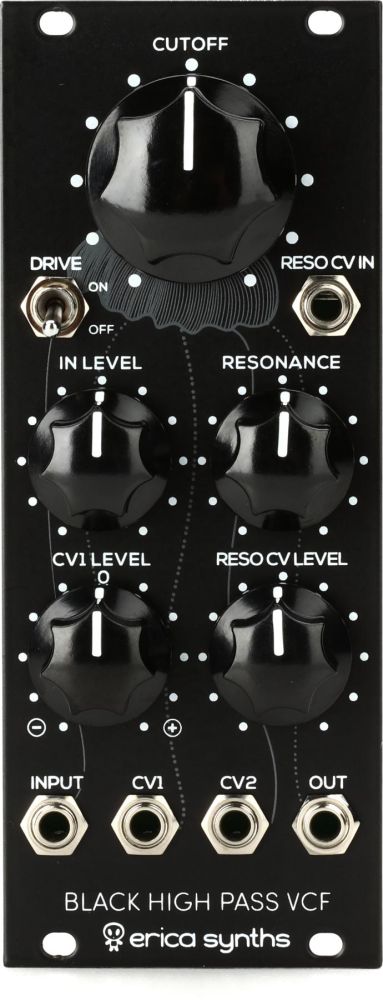

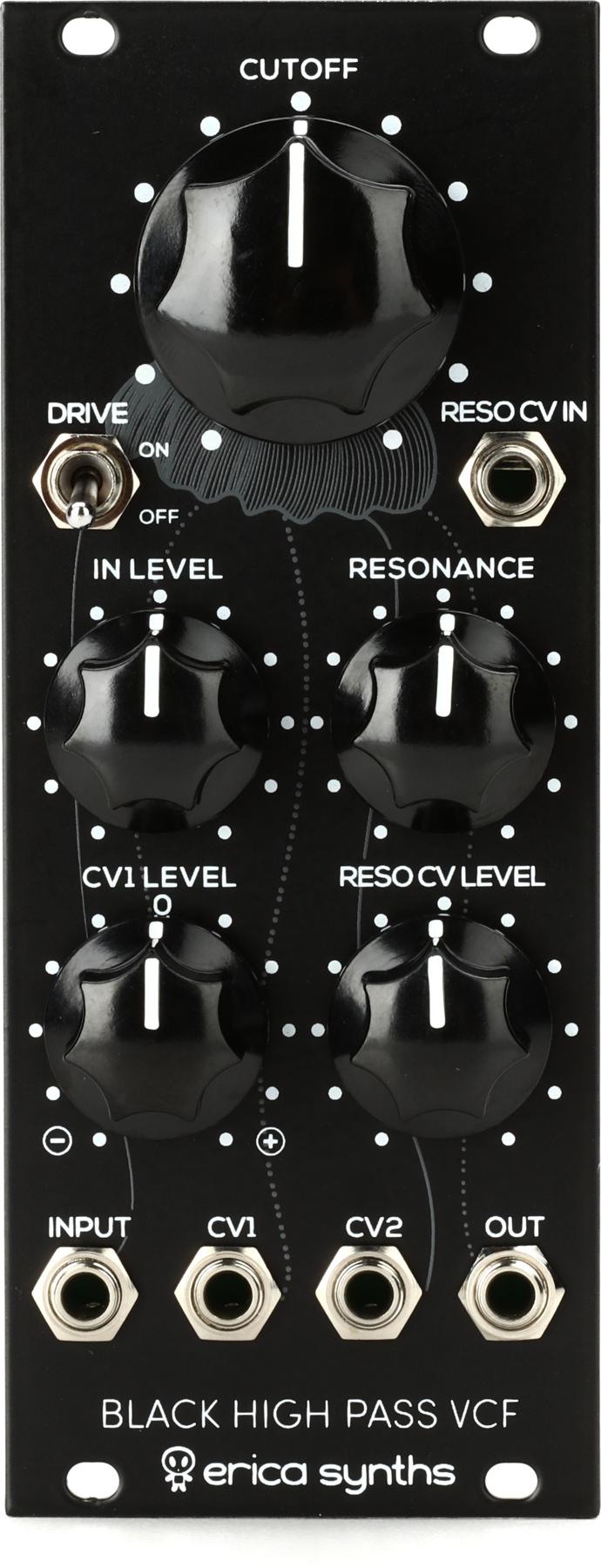

Black High-Pass Filter

The Erica Synths Black High-Pass VCF is a dedicated and high-quality analog filter designed for the discerning sound designer and modular synthesist. This Eurorack module provides a classic 24dB/octave high-pass filter with a rich and musical character, making it an essential tool for shaping the low-frequency content of your audio signals. Whether you're looking to tighten up your basslines, create airy and ethereal textures, or perform dramatic filter sweeps, the Black High-Pass VCF delivers with precision and authority. Its robust build and intuitive layout make it a pleasure to use in both studio and live performance settings.

The core of the Black High-Pass VCF is its all-analog signal path, which ensures a warm and organic sound. The filter has a steep 24dB/octave slope, which is ideal for creating clean and defined high-pass effects. The large Cutoff knob allows for smooth and precise control over the filter's frequency, while the Resonance control adds a musical peak at the cutoff point, which can be used to create classic resonant sweeps and add emphasis to specific frequencies. At high resonance settings, the filter will self-oscillate, producing a pure sine wave that can be used as an additional sound source. A standout feature of the Black High-Pass VCF is its built-in, post-filter overdrive circuit. This can be engaged with a switch and allows you to add a layer of analog saturation and grit to the filtered signal. The amount of drive is user-adjustable, so you can dial in anything from subtle warmth to aggressive distortion. The module also features two CV inputs for the cutoff frequency, one with an attenuverter, and a CV input for the resonance, providing extensive possibilities for dynamic and expressive modulation.

Features

• 24dB/octave analog high-pass filter for precise low-frequency control.
• Manual control over cutoff frequency and resonance.
• Self-oscillation at high resonance settings for use as a sound source.
• Built-in, user-adjustable overdrive circuit for added harmonics and grit.
• Two CV inputs for cutoff modulation (one with an attenuverter) and one for resonance.
• Designed to be used with the Black Filter Coupler for expanded filter types.
• High-quality components and a robust, performance-friendly design.
