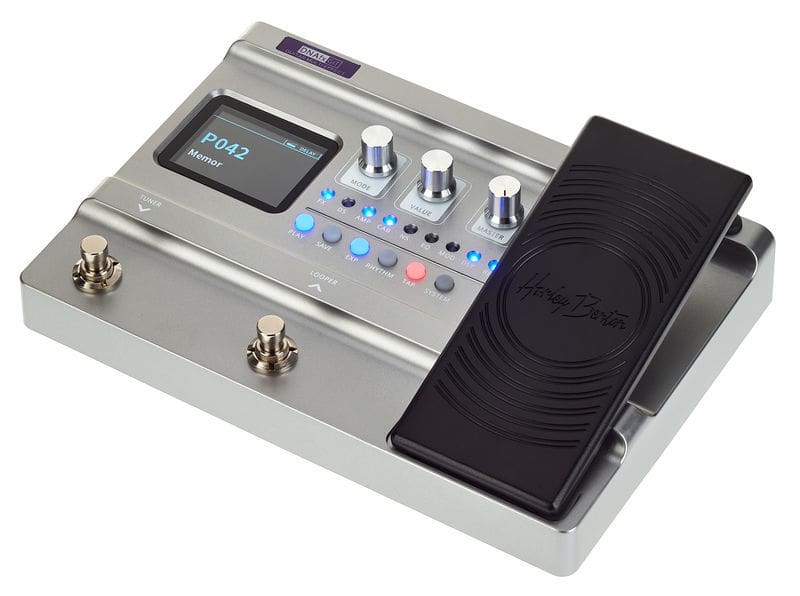

DNAfx GiT

The sound of legendary amps and effects, from vintage valves to the latest hi-tech gear, in a robust, road-ready housing: that's the DNAfx Git advanced amp modelling multi-effect processor.

Create your perfect guitar tones selecting modelled gear from a plethora of classic and modern amps, cabs and effects; dive into the onboard drum machine to accompany your riffs; connect to your computer to edit your patches or record your playing... DNAfx is a great-sounding, super-portable guitar rig for gigs, practice or song-writing sessions featuring two quality footswitches and a built-in expression pedal for on-the-fly editing, a big colour LCD display, all the I/O you could ever need.

Specifications

• 55 Classic and modern high-quality guitar amp models.
• Non-linear amp modelling technology with real tube amp sound, feel and response.
• 26 Classic and modern impulse response (IR) speaker simulations with additional support for third-party IR files.
• 151 Different classic and modern effects: Drives, compressors, noise gates, EQs, modulation, wah, pitch, filters, delays, reverbs and more.
• Up to 9 types of effects can be used at the same time.
• Large, easy-to-read LED colour display.
• 80 Second phrase looper.
• Modern drum computer with 40 drum patterns and 10 metronome rhythms.
• Integrated expression pedal for easy setting of the effect parameters.
• Up to 200 preset patches can be saved.
• Tap tempo function.
• Easy-to-read chromatic LED tuner (435 - 445 Hz).
• USB connectivity for editing, direct audio recording (DAW) and software updates on PC/Mac.
• Programmable outputs for easy integration with any live or studio setup.
• Headphone output and AUX input for playing and jamming to tracks from external devices.
• OTG function supports smartphone and tablet software for direct audio/video recording and live streaming.
• Sampling rate: 44.1 kHz.
• Sampling resolution: 24-bit.
• Robust housing made of ABS (top part) and aluminium (bottom).
• Dimensions (W x D x H): 230 x 156 x 32.8 mm.
• Weight: 1 kg.
• Power supply unit included (9 V DC 300 mA).

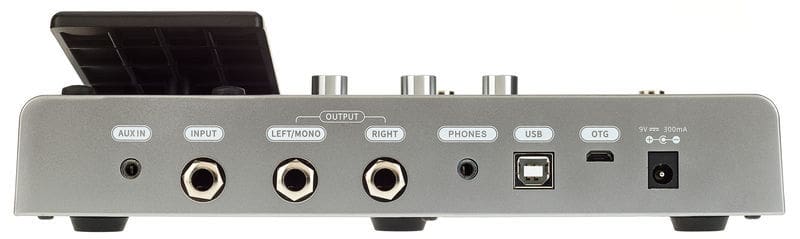

• Connectors:@+@+.
• Inputs: 6.3 mm jack.
• Outputs L/R: 6.3 mm mono jack.
• AUX in: 3.5 mm stereo jack.
• Headphone output: 3.5 mm stereo jack.
• OTG port: Micro USB.
• USB port: Type B USB.
• Note: Battery operation is not supported.
• Note: The editor software for Windows / Mac can be downloaded from the download area at the bottom of this page.@+@+.
