Ensemble

30 IN X 34 OUT Thunderbolt 2 Audio Interface for Mac

Superior Sound Quality. Powerful Plugin Performance. Lowest Latency.

Ensemble Thunderbolt is the best sounding all-in-one audio recording interface for Mac. With ultra-low latency performance, comprehensive studio functionality and legendary Apogee quality, Ensemble is the ideal choice to meet the diverse demands of the professional home or commercial studio. Ensemble features premium Apogee AD/DA conversion, 8 Advanced Stepped Gain mic preamps, monitor controller functionality including talkback, front panel Guitar I/O, two headphone outputs and digital connectivity for a total of 30 x 34 I/O.

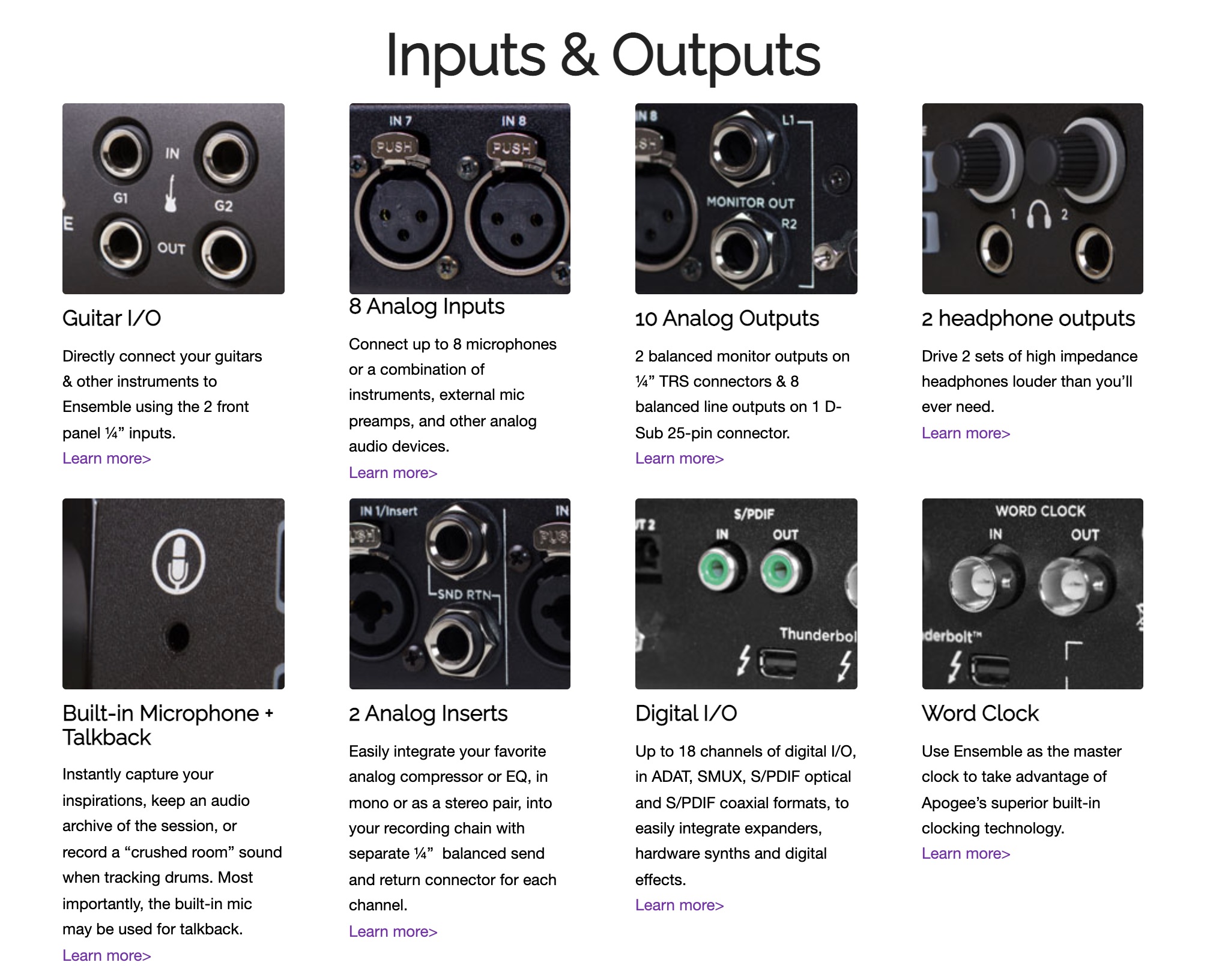

Ensemble Thunderbolt Highlights:

• 8 Mic preamps with up to 75 dB of gain and Advanced Stepped Gain circuit.
• Legendary Apogee AD/DA conversion.
• Thunderbolt connectivity for ultra-low latency (1.1ms round trip with Logic Pro X).
• Front panel Guitar I/O with Class A JFET inputs, dual mode re-amp outputs.
• Talkback functionality with built-in mic and control button.
• 2 PurePower headphone outputs.
• 10 separately assignable analog inputs.
• 16 analog outputs of premium Apogee conversion.
• Core Audio optimized DMA engine frees up Mac CPU for plugins and software instruments.
• Apogee Control software offers highly customizable workflow and Essentials Control Strip window.
• Compatible with Apogee Control hardware remote studio controller.
• Connect two Ensembles to your Mac and double your analog inputs and outputs.
• Connect any Apogee Element series interface to Ensemble for additional Ensemble quality inputs and outputs.

A Difference You Will Hear

Apogee is an award-winning industry leader in digital recording technology with over 25 years of experience. Preferred by recording pros around the world, Apogee products like Duet, Quartet, the original Ensemble and Symphony I/O have been instrumental in creating countless GRAMMY and OSCAR winning recordings and have set the industry standard in professional recording for over two decades. Ensemble is built solidly on this reputation.

From the mic preamps to the AD/DA converters and the clocking, Ensemble is best-in-class and cutting-edge Apogee technology. With components carefully selected in critical listening tests and a highly efficient circuit design, Ensemble was built by Apogee engineers to make a difference you can hear.

Measurably Superior A/D Conversion

Ensemble's analog-to-digital conversion stage has been upgraded from previous generations of Apogee products such as Duet and Quartet to provide greater dynamic range, lower distortion and an almost non-existent noise level.

Dynamically Optimized Mic Preamps

Ensemble's 8 uniquely designed mic preamps feature Apogee's Advanced Stepped Gain Architecture, in which the circuit is dynamically optimized to provide superior bandwidth, ultra low noise and nonexistent distortion across the unprecedented gain range of 0-75 dB. Whether recording powerful drums, dynamic vocals or delicate strings, your recordings retain the full impact, intricate detail and lifelike dimension of the original performance.

ESS Sabre32 DAC Technology

ESS Sabre32 32-bit Hyperstream DAC with Time Domain Jitter Eliminator offers unequalled dynamic range, ultra low distortion, and unmatched audio clarity free from input jitter.

Custom Power Regulation for Ultra-Low Noise Performance

Ensemble's mic pre, A/D and D/A circuitry are powered by discrete, Apogee-designed power regulators for ultra-low noise not obtainable with off-the-shelf components. This design was first implemented in Apogee's flagship Symphony I/O's 3-Stage Cascaded power supply.

Soft Limit for protection from digital overs

An Apogee technology first introduced in 1992 on Apogee's AD-500 converter, Soft Limit can be heard on countless platinum selling records around the world. Once a technology exclusively reserved for Apogee's most advanced audio converters, Soft Limit is included in Ensemble and can be enabled in Apogee Control software or from the front panel.

This superior FET-based analog design prevents the digital clipping that causes distortion by instantaneously rounding off transient peaks before they hit the analog-to-digital converter. Soft Limit allows several more decibels of apparent level to be recorded while subtly providing an analog tape-like warmth to the sound.
