EX2M - Expression pedal to MIDI adapter

 My KVR
USB-MIDI Expression Pedal Controller by beat bars
€59.90
EX2M - Expression pedal to MIDI adapter
EX2M - Expression pedal to MIDI adapter EX2M - Expression pedal to MIDI adapter EX2M - Expression pedal to MIDI adapter EX2M - Expression pedal to MIDI adapter EX2M - Expression pedal to MIDI adapter EX2M - Expression pedal to MIDI adapter

This is a Hardware product

Firmware
1.0.1
Interfaces
MicroUSB USB 2
I/O
¼” Expression Pedal MIDI Out
Power
Bus Powered
Driver
No Driver Required
My KVR - Groups, Versions, & More
1 KVR member has added EX2M - Expression pedal to MIDI adapter to 1 My KVR group 1 time.
Not In Your MY KVR Groups
(or group limitation prevents versioning)

KVR Rank

Overall: 3883   74

30-Day: 4894; 7-Day: 2852; Yesterday: 2829

The Expression pedal to MIDI adapter provides a seamless connection between the expression pedal and the computer. It converts pedal movements to stream of MIDI messages via the USB port. The adapter is intended for musicians who want to connect standard pedals directly to their computers to free their expression and use thousands of VST plug-ins by foot-controlled MIDI.

For Guitarists.

Why not to change the settings of your plug-ins in the Amp Simulator while playing using the expression pedal? Now the wah-wah effect and any knob of a different effect will be within reach of your foot, in one pedal.

For Keyboardists.

You don't have a pedal slot on your keyboard? Now, thanks to the adapter, you can use the standard pedal to control expression (volume, modulation, or other parameters) and free your hands. You get one more place to work with effects.

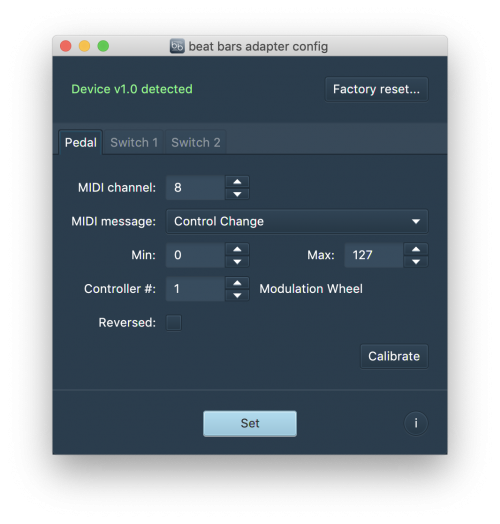

Functions configurable by the software:

  • MIDI Channel.
  • MIDI Message Type:
    • Control Change (CC).
    • Pitch Bend Change.
    • Polyphonic Key Pressure (Aftertouch).
    • Channel Pressure (Aftertouch).
  • MIDI Output Range.
  • MIDI parameter value (depends on MIDI Message type, e.g. CC #).
  • Reversed Mode.
  • Pedal Calibration.
  • Factory Reset.

Technical Specification:

  • Input: TRS jack socket ¼" (6.35 mm) suitable for all standard expression pedals.
  • Output: Micro-USB socket.
  • Included Accessories: 15 cm USB standard A-type male cable, for connection to any USB port on your computer.
  • Power Source: USB bus.
  • Power Consumption: ~20mA @ 5V.
  • Data Transmission: Class-compliant MIDI over USB.
  • Weight: 37 g (1.3 oz.).
  • Dimensions: 78 × 36 × 21 mm (3.1" × 1.4" × 0.8").
  • The adapter is compatible with Windows PC, Linux and Mac computers.

Expression Pedal is not included.
