MPC XL

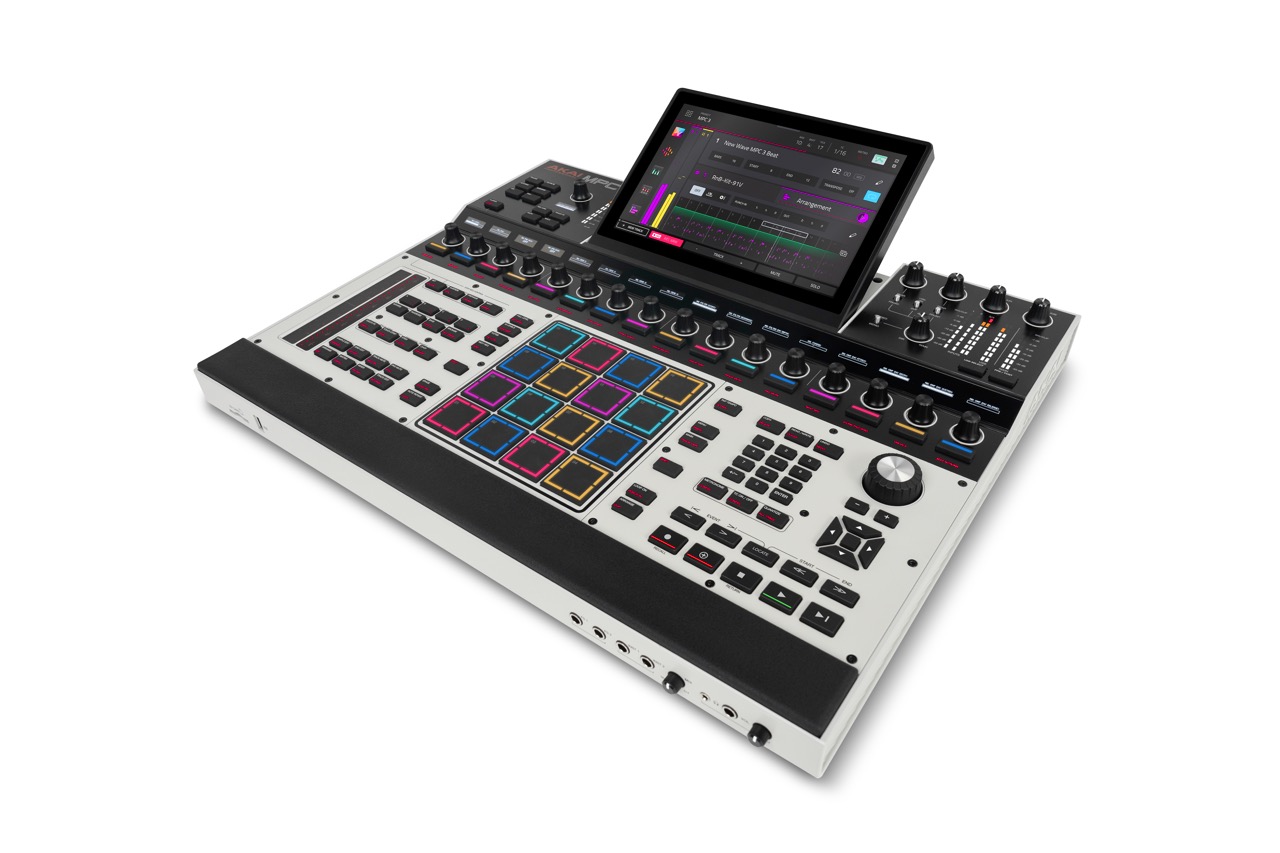

The Akai Professional MPC XL is a standalone music production workstation designed to function as the central hub of a modern studio without the need for a computer. Powered by a Gen 2 8-core processor and 16GB of RAM, it offers significantly expanded processing headroom compared to previous MPC models, capable of running up to 32 plugin instruments and 16 audio tracks simultaneously. The unit features a 10.1-inch tilting multi-gesture touchscreen and introduces "MPCe" pads, which utilize 3D-sensing technology to divide each pad into four quadrants for complex sound morphing and layer control.

Connectivity is comprehensive, catering to both hardware-heavy and hybrid setups. The rear panel includes two XLR/TRS combo inputs with preamps, two instrument inputs, and phono inputs for direct sampling from vinyl. For output, the MPC XL provides eight assignable line outputs and 16 CV/Gate outputs (via eight stereo jacks), making it suitable for controlling modular synthesizers. It runs on the MPC3 operating system, which includes advanced features such as real-time stem separation, disc streaming, and a full DAW-style arrangement view.

Key Features

• Standalone Operation: Powered by a Gen 2 8-core processor and 16GB RAM; no computer required.
• MPCe Pads: 16 velocity-sensitive pads with 3D sensing and quadrant-based modulation.
• Display: 10.1-inch HD multi-gesture touchscreen with adjustable tilt.
• Storage: 256GB internal NVMe SSD with a SATA expansion bay for additional drives.
• Control: 16 Q-Link knobs with individual OLED displays, plus a dedicated XL Channel Command section.
• Audio I/O: 2 Mic/Line combo inputs, 2 Instrument inputs, 2 Phono inputs, 8 Line outputs.
• CV/Gate: 16 total outputs for modular integration.
• Software: Runs MPC3 OS; includes Native Instruments MPC Edition Play Series and stem separation tools.
