rAMPage v1.6

Analog-Style Amp Emulator

---

Download Demo

---

Overview

rAMPage is a next-generation amp that combines authentic tube circuit modeling with efficient DSP design. Choose from a range of classic amp types such as Fender, Marshall, Vox, Mesa, Orange, Hiwatt, and more, each carefully tuned to capture the unique response, saturation, and dynamics of real hardware. With no complex setup and zero hidden controls, rAMPage is built for producers and musicians who want instant, great tone without the menu-diving. Just dial in Gain, Tone, Presence, and Volume, then play.

---

Key Features

Authentic Amp Models

• 14 amp models: Flat, Clean, Fender, Marshall, Vox, Lead, Heavy, Bass, Boost, Mesa, Orange, Hiwatt, Soldano, Jazz Clean.
• Each model has unique saturation curves with drive, asymmetry, and output compensation.
• Model-specific frequency responses: Custom bass (60-120Hz), mid (400-1200Hz), treble (3000-7000Hz), and presence (4000-8000Hz) per amp type.
• Carefully tuned Q factors for authentic passive tone stack interaction.
• No hidden parameters, what you hear is what the circuit would give you.

Tube-Style Dynamics

• Asymmetric saturation: Independent positive/negative wave shaping mimics tube rectifier behavior.
• Tanh-based clipping with drive and asymmetry parameters for smooth, musical distortion.
• Output gain compensation maintains perceived loudness across drive settings.
• Power amp dynamics react to your playing intensity.

Tone Stack & Presence

• Interactive Bass, Mid, and Treble EQ (±24dB range) with authentic passive-style response.
• Low-shelf bass filter (60-120Hz) for low-end control.
• Parametric mid filter (400-1200Hz) for body and presence.
• High-shelf treble filter (3000-7000Hz) for sparkle and bite.
• Presence control (±24dB, 4000-8000Hz) shapes the high-mid feedback region for cut or smoothness.
• IIR filter processing for CPU-efficient, high-quality EQ.

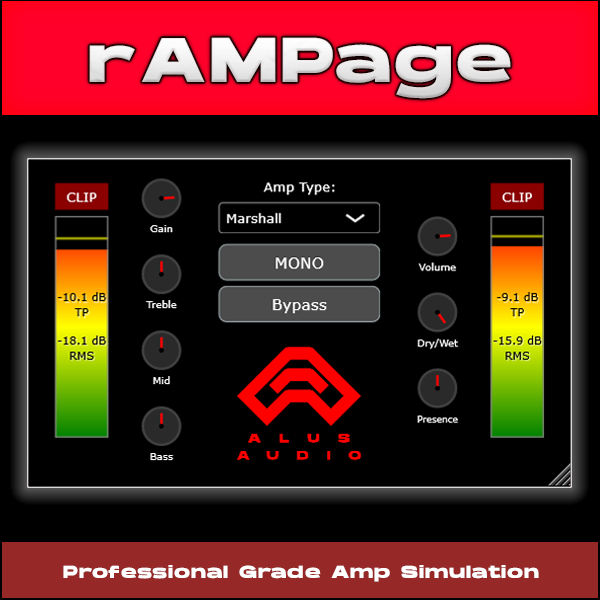

Simple, Effective Controls

• Gain (-96dB to +24dB) - Adjusts input drive and preamp character.
• Tone - 3-band EQ shaping with ±24dB range per band.
• Presence (±24dB) - Refines power amp feedback response.
• Volume (-96dB to +24dB) - Sets final output level.
• Dry/Wet mix (0-100%) for parallel processing flexibility.
• True silence at -96dB: No digital noise floor at minimum settings.

Advanced Processing

• Smoothed parameter changes: 50ms ramp time prevents zipper noise and clicks.
• Per-block filter updates: Efficient coefficient calculation minimizes CPU overhead.
• Dual output modes: Mono (summed) or Dual (stereo) processing.
• Bypass with state preservation: Maintains dry signal perfectly when bypassed.
• Delay-compensated dry buffer for phase-coherent wet/dry mixing.

Professional Metering

• Dual peak meters: Separate input and output level monitoring (-60dB to +6dB range).
• RMS and peak detection: Both metrics calculated for accurate level representation.
• Clip indicators: Visual feedback with click-to-reset functionality.
• Smoothed metering: 60% attack, 3% release for readable, responsive meters.
• Per-channel analysis with stereo magnitude calculation.

Resizable Interface

• Scalable UI
• Persistent size settings

Technical Excellence

• Low CPU usage
• State management
• Thread-safe parameter handling
• Tooltip system

---

Technical Details

Plugin Type	VST3
Supported OS	Windows 10 and above
Space Required	5 MB
Version	1.6
