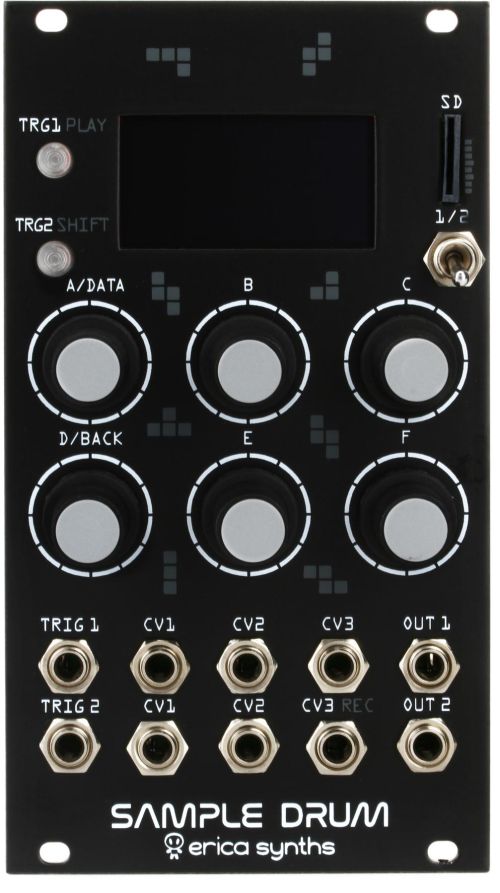

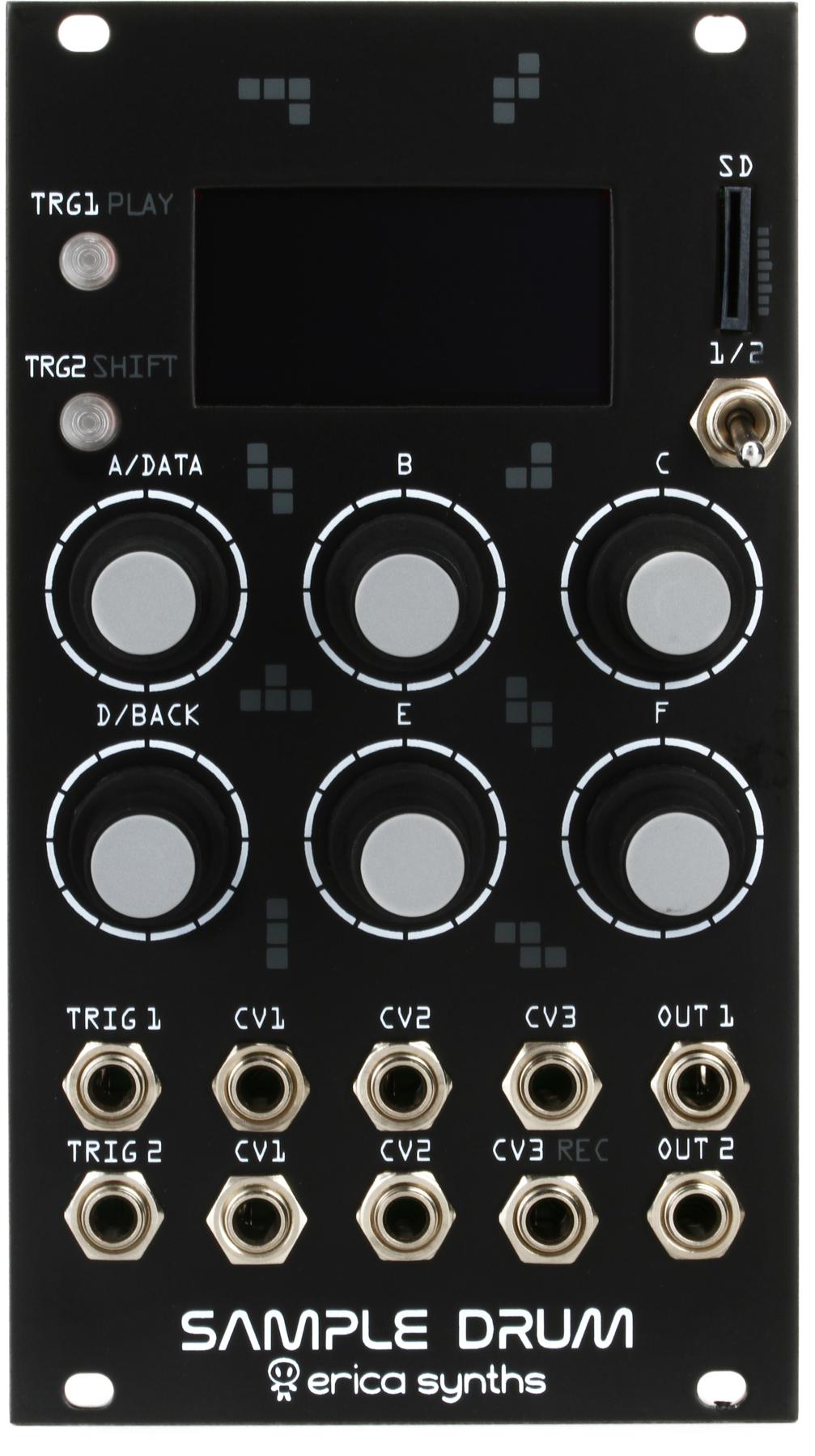

Sample Drum

The Erica Synths Sample Drum is a powerhouse of sampling and playback designed specifically for the Eurorack modular environment. This 14HP module transcends the boundaries of traditional drum modules by offering a flexible and intuitive workflow for recording, manipulating, and sequencing your own audio. Whether you're capturing sounds from your modular system, external instruments, or your computer, the Sample Drum provides a high-fidelity platform to integrate any sound imaginable into your rhythmic compositions. Its combination of immediate, hands-on control and deep sound-shaping capabilities makes it an indispensable tool for producers of techno, industrial, experimental, and any genre that thrives on unique and personalized drum sounds.

At its core, the Sample Drum allows you to record audio directly into its memory at a crisp 16-bit/44.1kHz resolution, ensuring your samples retain their original quality. The module features two independent channels, allowing you to trigger two different samples simultaneously. Once recorded, the real creative power is unleashed through a comprehensive suite of sample manipulation parameters. You can adjust the sample's start point, end point, and pitch, reverse the playback, and even create granular-style textures by looping and scanning through tiny fragments of the audio. Each channel has its own virtual VCA and an AHD envelope, allowing you to shape the dynamics of your samples without needing external modules. Further sonic sculpting is provided by a voltage-controlled digital filter with selectable low-pass, band-pass, and high-pass modes. The module also includes a built-in digital overdrive effect to add grit and aggression. With extensive CV control over nearly every parameter and the ability to save your creations to an included microSD card, the Sample Drum is a deep and endlessly inspiring rhythmic tool.

Features

• Dual-channel sample recording and playback module.
• High-quality 16-bit/44.1kHz audio resolution.
• Direct audio recording via the onboard input.
• Manual and CV control over sample start, end, and pitch.
• Sample playback reversal function.
• Virtual VCA with AHD envelope per channel.
• Voltage-controlled digital filter (LP/BP/HP).
• Built-in digital overdrive effect.
• Three freely assignable CV inputs per channel for extensive modulation.
• Preset memory for saving and recalling your kits.
• Includes a 16GB microSD card pre-loaded with factory samples.
