Shaper Table

Wavetable Powered Distortion

Ever hear of waveshaping? Shaper Table expands on the concept and lets you use a table of data (like maybe a wavetable you have lying around) for the shape remapping. That way you can scroll through the frames of the table and get a distortion effect that morphs over time. Pretty nifty.

We've included a big number of cool tables specifically for this purpose, but you are also free to create your own with our table editor. So let your imagination run wild and create the gnarliest distortion sweeps known to man.

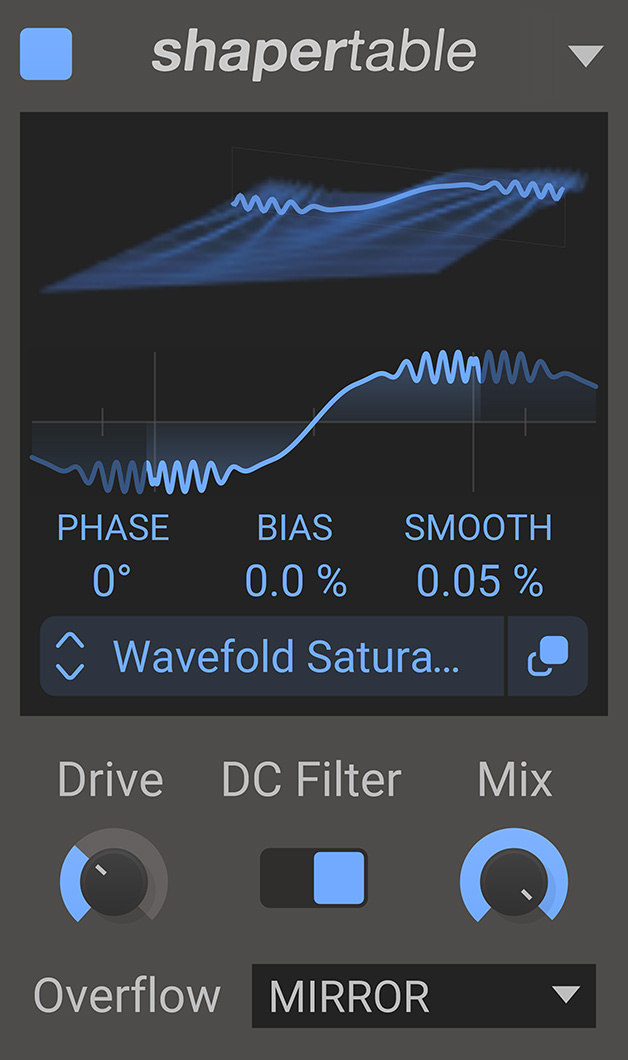

Features:

• 3D graph: A visualization of the available frames in the loaded table. Click and drag to change frame.
• 2D graph: A visualization of the currently selected frame with other setting applied, like Phase e.t.c.
• Phase: Sets the Phase rotation of the selected frame.
• Bias: The bias will add a DC offset to the signal before distorting. Adding some bias can prevent the distorted audio from sounding hollow and uninteresting.
• Smooth: Applies a smoothing filter to the wave shape, which makes the distortion less harsh.
• Drive knob: The drive setting will boost the input signal, causing a heavier distortion.
• DC Filter: Enables a DC filter that fixes any DC offset introduced by the distortion.
• Mix: The dry/wet mix of this effect. A lower value will let some of the unmodified signal through.
• Overflow modes: Select what happens beyond the edges of the wave shape curve. Repeat the wave, hold the edge value, or repeat with mirroring.
• Table selector: Selects a table from the Table browser. Click the popup button to open the table editor.
