Spectraphon

The Make Noise Spectraphon is a groundbreaking dual spectral oscillator that pushes the boundaries of synthesis in the Eurorack format. This is not a conventional analog or digital oscillator; instead, it operates in the frequency domain, analyzing the spectral content of audio signals and using that information to create entirely new sounds. It functions as both a powerful, self-contained synth voice and a unique audio processor, allowing you to perform real-time spectral analysis and resynthesis. The Spectraphon effectively allows one sound to "become" another, opening up a universe of sonic possibilities previously unexplored in hardware.

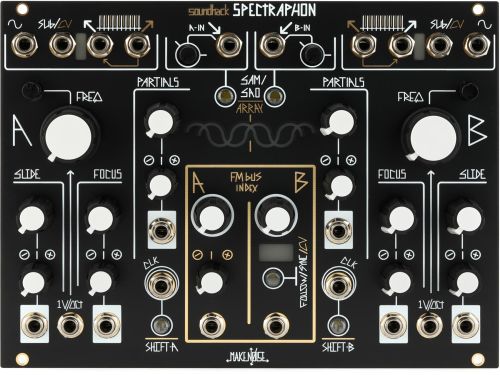

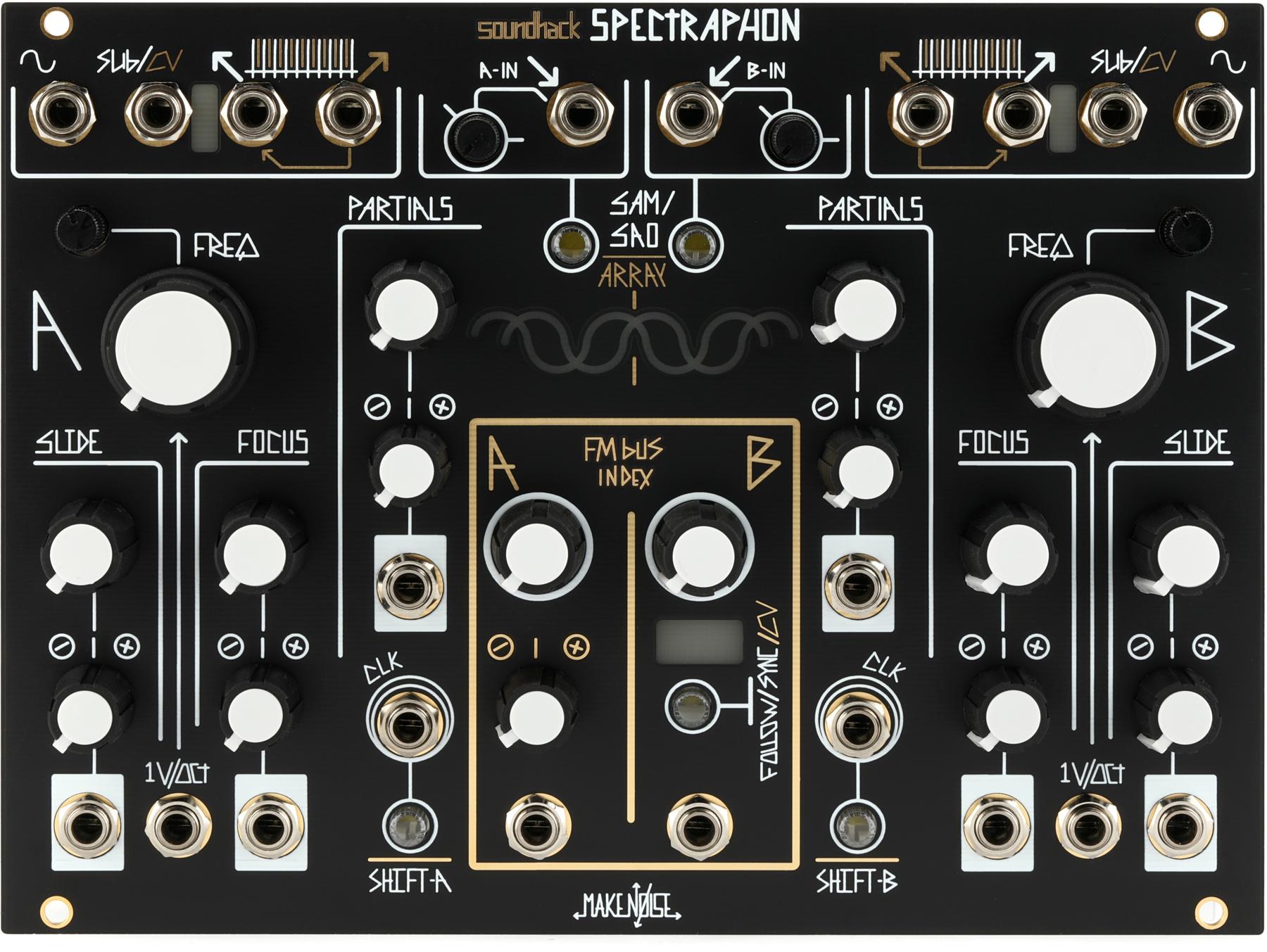

The module is composed of two identical sides, A and B. Each side can operate in one of two modes: Spectral Amplitude Modulation (SAM) or Spectral Array Oscillation (SAO). In SAO mode, the Spectraphon generates sounds based on a defined set of harmonics, which can be tuned and modulated. In the revolutionary SAM mode, the module listens to an external audio signal via its "Program" input, analyzes its spectrum, and applies that dynamic spectral profile to its own internal oscillator. This allows you to impart the timbral characteristics of a drum loop onto a drone, or the formant structure of a voice onto a sawtooth wave. With extensive CV control over parameters like Slide, Focus, and Partial selection, the Spectraphon is a deep, complex, and endlessly fascinating instrument for sound design and sonic alchemy.

Features

• Dual Spectral Oscillator for synthesis and resynthesis in the frequency domain.
• Two modes per oscillator: Spectral Amplitude Modulation (SAM) and Spectral Array Oscillation (SAO).
• In SAM mode, resynthesizes sound based on the spectrum of an external audio input.
• Internal oscillators can be sine waves or sub-octave arrays.
• Extensive CV control over spectral characteristics like Slide and Focus.
• FM Bus for internal frequency modulation between the two oscillators.
• Can be used as a dual complex oscillator or a unique spectral audio processor.
• A truly innovative module for advanced sound design.
