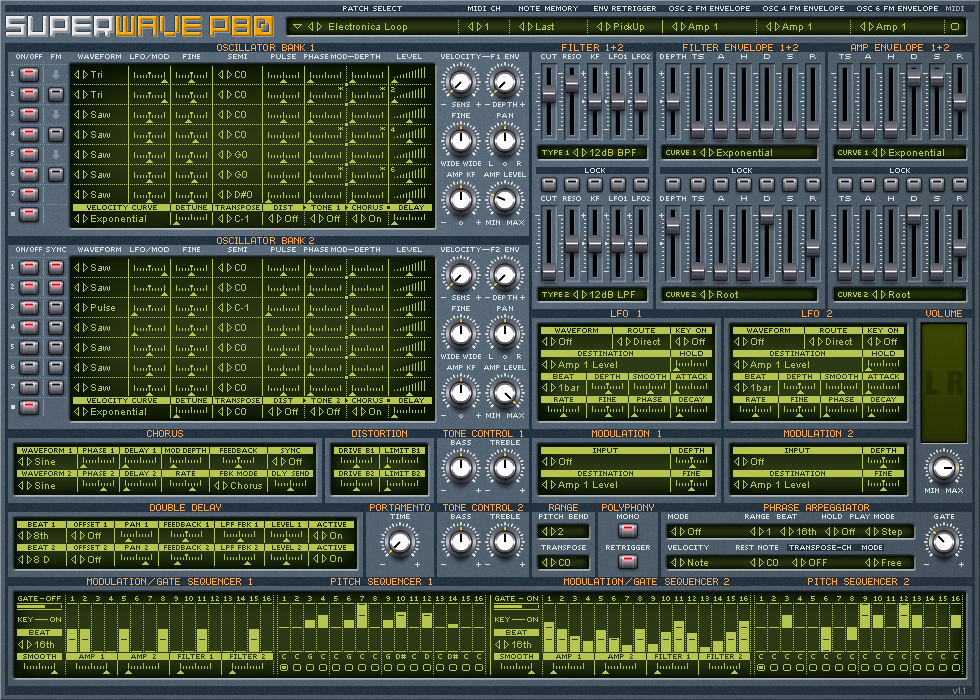

SuperWave P80

A powerful virtual analogue synthesizer incorporating embedded FM synthesis.

Many SuperWave customers asked us if it was possible to implement a step sequencer into the P8, Professional or Trance-Pro and to have more control over oscillators and tuning parameters. We decided to develop a new synth based on the P8, Professional and Trance-Pro and share the powerful control surface from the Performer. The P80 features four sixteen step Sequencers, Phrase Arpeggiator and Multi-Effects which include Chorus, Double-Delay, Distortion and EQ. The P80 also features an overall detune function in each sound bank making it far easier to detune all oscillators with one simple control. The P80 is awesome at producing huge leads, pads and strings etc. If you produce trance music, you're going to love the P80.

Technical Specifications

Oscillators:

• 14 Oscillators (2 banks x7).
• Embedded FM synthesis.
• Waveforms: Sine, Saw, Ramp, Triangle, Pulse, Noise 1, Noise 2.
• Controls: Waveform, LFO/Mod Depth, Fine-Tune, Detune, Semi-Tune, Transpose, Pulse Width, Phase Modulation, Phase Modulation Depth, Level, FM, Sync, On/Off.

Filters:

• 2 Resonant Filters: 12dB, 24dB, Moog.
• Filter Types: Low Pass, Band Pass, High Pass, Band Reject.
• Controls: Filter Type, Cutoff Frequency, Resonance, Key Follow, LFO1 Depth, LFO2 Depth, Lock.

Amplifiers:

• 2 Amplifiers.
• Controls: Level, Pan, Key Follow.

Envelopes:

• 4 Envelopes (Filter x2, Amp x2) with Time Scale, Output Contour and parameter locking facility.
• Contour Types (Curve): 13.
• Controls: Curve, Time Scale, Depth, Attack, Hold, Decay, Sustain, Release, Lock.

Low Frequency Oscillators:

• 2 LFO's with substantial routing options.
• Waveforms: 18.
• Beat Ratios: 36.
• Controls: Waveform, Destination, Rate, Beat, Fine, Depth, Smooth, Phase, Key On, Route, Attack, Hold, Decay.

Modulation:

• Modulation x2 with substantial routing options.
• Controls: Input, Destination, Fine, Depth.

Arpeggiator:

• Phrase Arpeggiator (Maximum of 128 notes in order played).
• Modes: Forward, Back, Fwd+Back, Back+Fwd, Fwd+Back:2, Back+Fwd:2.
• Range: 1-4 Octaves.
• Beat Ratios: 4th, 8th, 16th, 32nd, 64th.
• Controls: Mode, Range, Beat, Hold, Play Mode, Velocity, Rest Note, Transpose MIDI Channel, Transpose Channel Mode, Gate.

Sequencer:

• 16 Step Sequencer x4 (Modulation/Gate x2, Pitch x2).
• Destinations: Amp1, Amp2, Filter1, Filter2, Pitch1, Pitch2, Gate1, Gate2.
• Beat Ratios: 21.
• Controls: Key, Beat, Smooth, Amp, Filter, Pitch, Gate, Step Value.

Effects:

• Effect Types: Chorus, Double Delay with damped feedback (LPF), Distortion, Tone Control.
• Chorus Controls: Waveform, Phase, Delay, Mod Depth, Feedback, Sync, Rate, FBK Mode, Delay Send.
• Double Delay Controls: Beat, Offset, Pan, Feedback, LPF Feedback, Level, Active.
• Distortion Controls: Drive, Limit.
• Tone Controls: Bass, Treble.

Other Features:

• Integrated Patch Browser for loading and saving of FXP and FXB files.
• 10 note polyphonic operation.
• Main volume control.
• Mono/Polyphonic control.
• Portamento control.
• Midi CC control with learn capability.
• 128 high quality presets.
