Swords

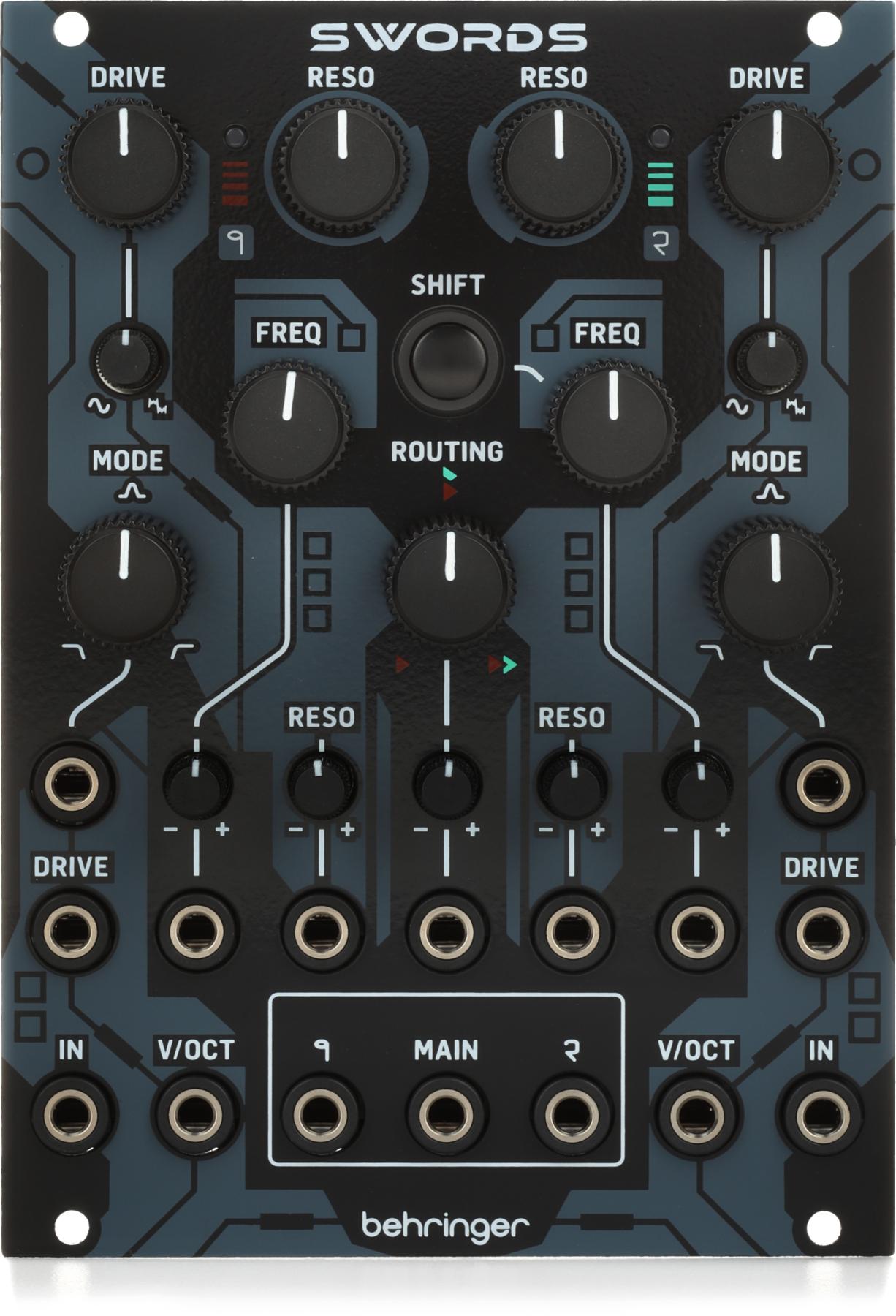

The Behringer Swords is a powerful and flexible dual analog multimode filter for Eurorack, based on the innovative Mutable Instruments Blades. This module offers two identical and highly versatile state-variable filters that can be used independently or combined for complex stereo processing and sophisticated sound sculpting. With its continuously variable filter response and a unique routing system, Swords excels at creating dynamic, evolving textures that go far beyond traditional filtering techniques.

Each of the two filters can be continuously morphed from low-pass through band-pass to high-pass, allowing for seamless sweeps across different filter types. A dedicated drive circuit for each filter can be adjusted from subtle soft clipping to an aggressive two-stage wavefolder, adding rich harmonics and grit to the signal. The most powerful feature of Swords is its routing control, which allows you to continuously crossfade the filters from running in parallel to running in series. When a signal is patched into the second filter's input, this routing knob becomes a crossfader between the two filters. With full CV control over all parameters, Swords is a deep and expressive tool for any sound designer.

Features

• Inspired by the Mutable Instruments Blades dual multimode filter.
• Two independent and identical 12dB state-variable filters.
• Continuously morphable response from Low-Pass to Band-Pass to High-Pass.
• Built-in drive circuit with soft clipping and two-stage wavefolding.
• Continuously variable routing control from parallel to series operation.
• Routing knob acts as a crossfader when both inputs are used.
• Full CV control with bipolar attenuators for all major parameters.
• An exceptionally flexible tool for stereo filtering and complex sound design.
