VelorX

VelorX is a high-fidelity Algorithmic Reverb Processor designed to provide total spatial control through advanced visual feedback. Built around a precision dual-layer FFT engine and a real-time stereo correlation monitor, VelorX eliminates the guesswork of spatial mixing.

It includes a dedicated Stereo Correlation Meter to protect your mix clarity. Expanding the soundstage can often introduce phase issues that weaken the signal in mono. By monitoring correlation in real time, you can confidently dial in wide.

"Fully coded DSP & GUI — no images, no SVGs, no skins. Pure signal."

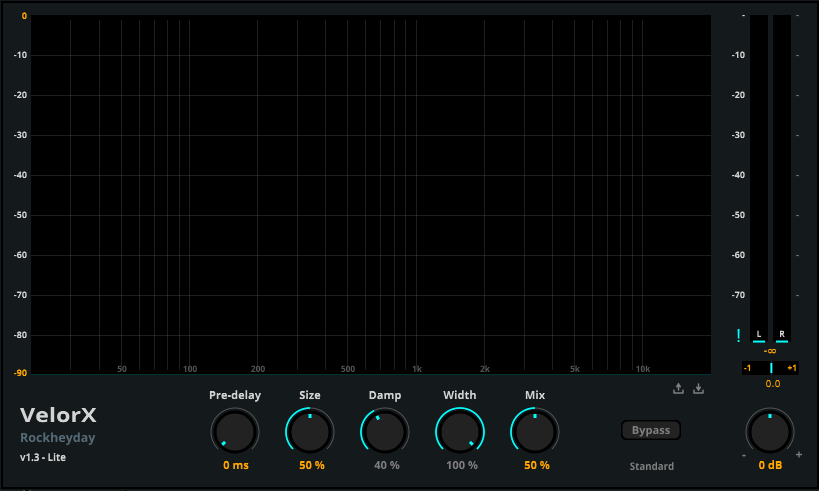

"Download the free lite version to explore VelorX and see if it fits your vibe. Your support helps drive future updates and new tools. Explore more audio tools in the Rockheyday Collection."

Key Features

• Engine: High-Fidelity Algorithmic Reverb with Dual-Layer FFT Analysis
• Spatial Controls: Adjustable Room Size (0–100%) and High-Frequency Damping
• Stereo Imaging: Variable Width Control (Mono to Wide Stereo)
• Mix Logic: Equal-Power Dry/Wet Blending for Constant Perceived Volume
• Pre-Delay: Up to 250 ms

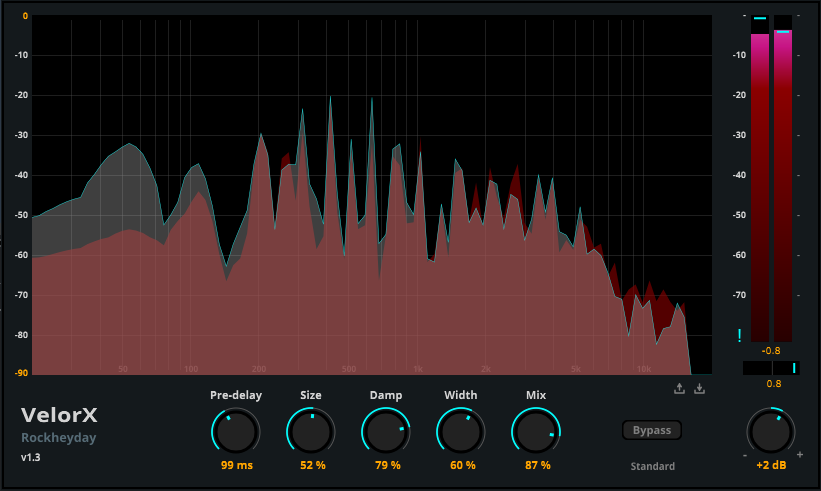

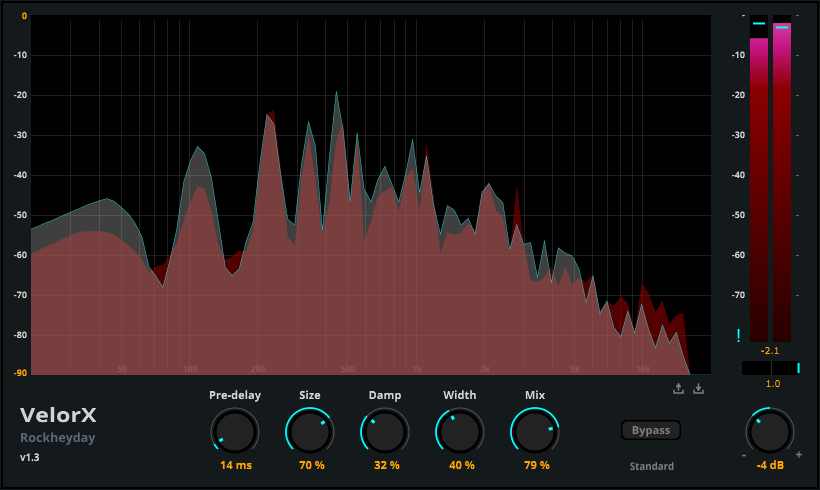

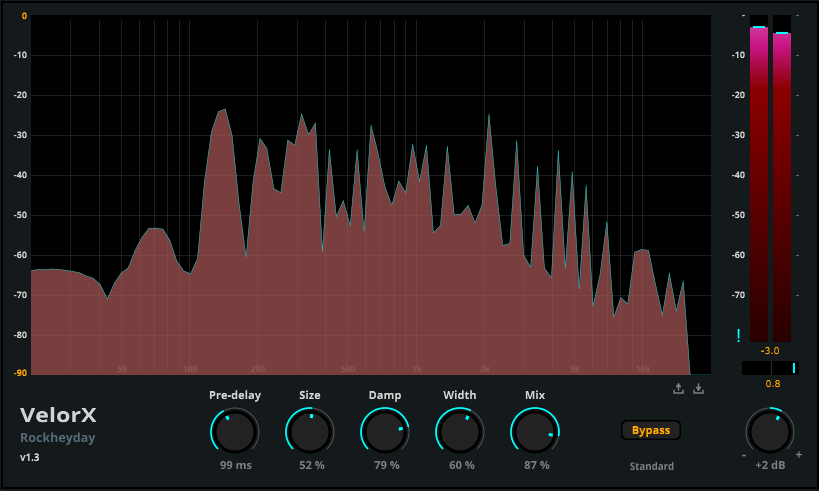

• Analyzer: Dual-Layer Input/Output FFT Display for Precise Harmonic Monitoring
• FFT Engine: 4096/8192-Point Resolution with Blackman Window
• Response Model: Internal 4.5 dB Tilt and 350 ms Ballistic Decay
• Gain Structure: Output Trim (-12 dB to +12 dB)
• Metering: Real-Time Correlation Meter and Dual-Layer LR Peak Meters
(Background = Input, Foreground = Output)
• Interface Scaling: Runtime Dual-Sizing Layout (Standard and Compact)
• Preset Management: Native XML-Based Saving and Loading System
• Precision: 32-Bit Floating-Point Processing
• Sample Rates: Multi-rate support (44.1 kHz - 96 kHz), dynamically matching host DAW settings.

CPU-Efficient Processing

Each tool is engineered with highly optimized DSP and lightweight graphics, ensuring stable, low-latency performance—even under heavy analysis or high sample rates.

Version History

v1.3 - June 2026
• Added VST3 Lite version and removed standalone version.
• Added Preset Management System for saving and loading presets.
• Added Standard and Compact size modes.
• Improved knob precision and control response for mouse wheel and drag adjustments.
• Optimized spectrum processing and peak meter performance.
• Minor UI refinements for improved visual consistency.

v1.2 – May 2026
• Aligned the behaviour of the spectrum display and dual peak meters when bypassed.
• Improved dual-layer spectrum resolution and standalone UI performance.

v1.1 – February 2026
• Disabled standalone native title bar maximize button to prevent UI layout issues.
• Improved standalone stability by disabling multi-instance mode to prevent potential launch conflicts.

v1.0 – Initial Release
• First public release of VelorX.
