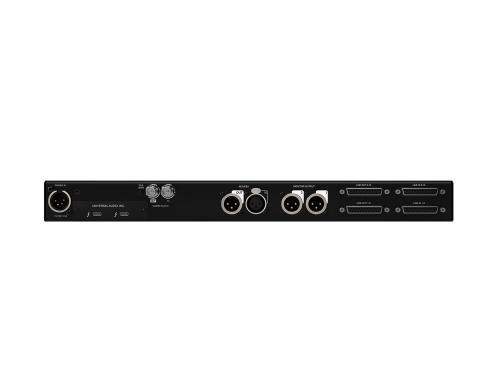

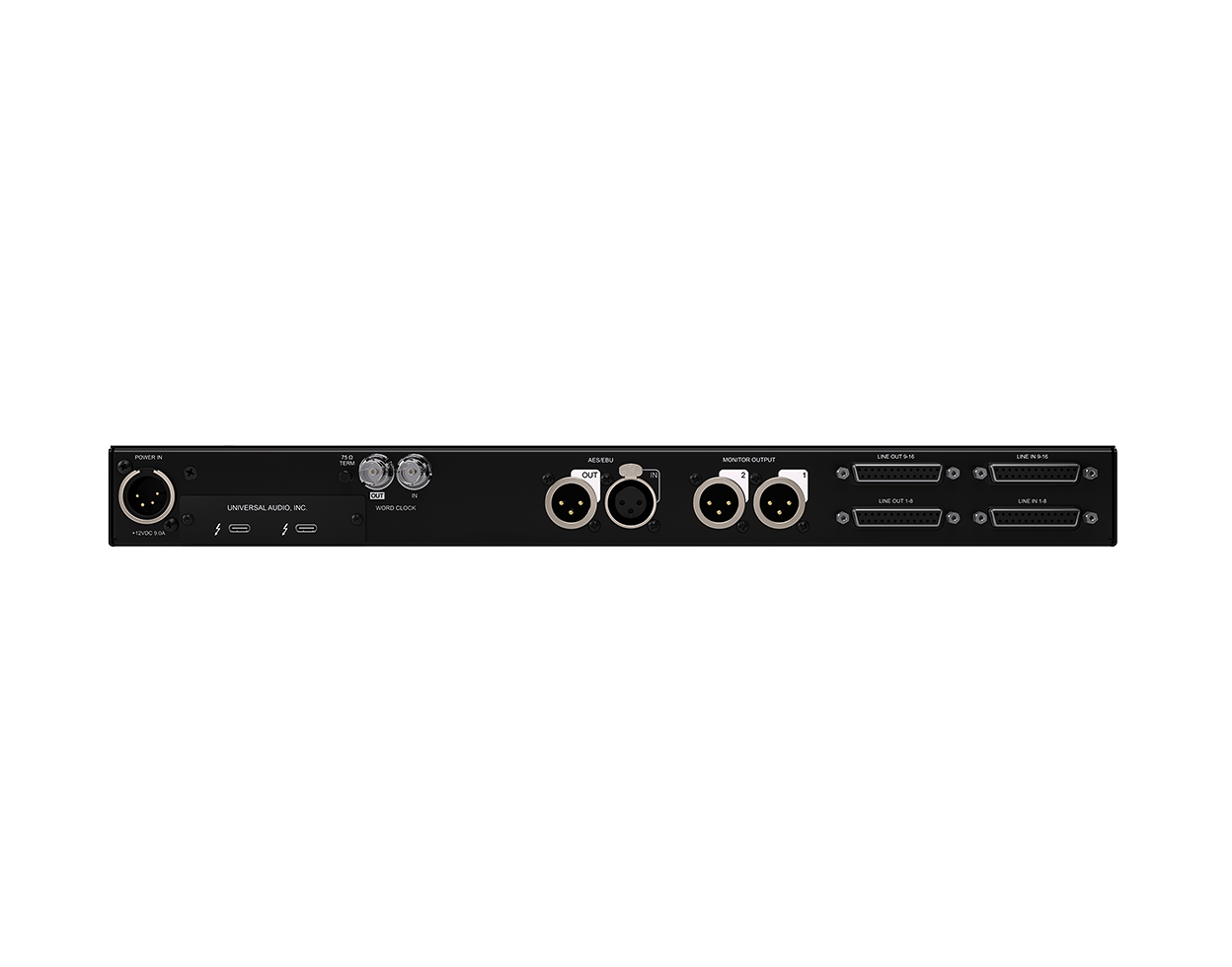

Apollo x16 is Universal Audio's flagship 24-bit/192 kHz audio interface, delivering world-class conversion with 16 x 16 analog I/O. This FireWire/Thunderbolt-ready* interface combines superior sound and flexible routing with powerful onboard UAD-2 QUAD processing. So you can track audio in real time through the full range of classic UAD analog emulation plug-ins — from Neve, Studer, Manley, Lexicon and more — on both Mac and Windows 7.*.
Apollo 16 was designed to give users the feel and flow of analog recording, while maintaining the benefits of mixing and mastering in a digital audio workstation (DAW). Its included software turns Apollo into a fully-functioning mixing console and allows users to control its hardware settings remotely, solving studio workflow and monitoring annoyances.
Apollo 16 features meticulous analog circuit design, top-end converters, and DC-coupled outputs — providing the lowest THD and highest dynamic range of any converter in its class. Two Apollo 16 units can be cascaded over MADI for an expanded system with eight UAD processors and 32 x 32 simultaneous analog I/O, capable of handling large professional mixes.
Apollo 16 also offers compatibility with Intel's high-bandwidth Thunderbolt technology on Macs via a user-installable dual-port Thunderbolt Option Card (sold separately). Thunderbolt provides greater UAD plug-in instances, improved performance at high sample rates, and reduced UAD plug-in latency in the DAW versus Apollo's standard FireWire connection.
With Apollo, latency is basically indiscernible. For example, when recording four "stacked" UAD plug-ins on the input in real time, analog-to-analog latency at 96kHz comes in at 1.1 milliseconds. With its onboard Realtime UAD Processing, Apollo 16 can retain its low-latency performance even in large sessions, and the user can leave their computer at a buffer setting that it can handle.
* Requires Windows 7 64-bit edition operating system and a qualified PCIe-to-FireWire adaptor. Thunderbolt option is Mac-only.
A Note about UAD Powered Plug-ins
UAD-2 and UAD-1 Powered Plug-Ins run exclusively on Universal Audio's UAD DSP Accelerator Cards. All available Powered Plug-Ins are included in the UAD Software Installer/Updater Package; and every Plug-In title has a separately activated 14-day trial -- so users can try before they buy, at their own pace. Once a user decides to purchase a Plug-In, they can click on the Plug-In toolbar "Buy" button, which automatically takes them to the www.uaudio.com website and carts the plug in; or this can be done manually via browsing our webstore. Once the purchase is complete, a downloadable Authorization File is made available. Users simply drag and drop this Auth. File into the UAD meter, and the Plug-In is authorized. UAD-1 users can transfer Plug-In licenses to UAD-2 format for free (one time only). Via Customer Support, Universal Audio also allows registered UAD owners to sell their UAD card(s) with Plug-In licenses, transferring the licenses to the new card owner (subject to Universal Audio approval).
