LSP Oscilloscope

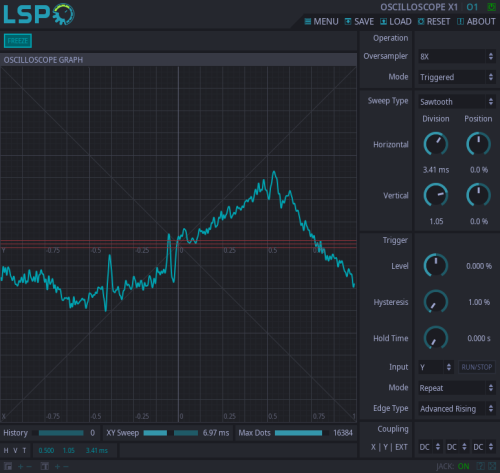

This plugin implements a simple, but flexible, oscilloscope.

The oscilloscope channel has the following features:

• X input channel.
• X output channel.
• Y input channel.
• Y output channel.
• EXT input channel.
• Triggered operation.
• XY operation.
• Goniometer operation.

The X channel is used to drive the horizontal coordinate of the trace plotted on the oscilloscope graph in XY and Goniometer operation. In Triggered mode the horizontal coordinate is driven by an internal sweep generator.

The Y channel is used to drive the vertical coordinate of the trace plotted on the oscilloscope graph.

The EXT (external) channel is an alternative channel that can be used to drive the trigger.

All channels can be freely oversampled and passed through a DC blocking filter.

In a more general fashion with respect most scopes, each channel has a full set of channels and can have a different timebase. Multichannel scopes also have general controls that can be used to override multiple channels.
