SuperGLUE v1.3

Legendary SSL Bus Compression Reimagined With Modern Precision

---

Download Demo

---

Overview

SuperGLUE delivers the authentic SSL bus compression experience with three carefully modeled compressor profiles. From the transparent E-Series to the punchy G-Series and the aggressive G+, SuperGLUE provides the precise glue, punch, and harmonic character that made SSL consoles legendary. Featuring true RMS detection, profile-specific timing curves, intelligent auto release, and harmonic saturation, SuperGLUE is perfect for both subtle mix bus glue and aggressive parallel compression. Oversampling up to 16x ensures alias-free processing for the cleanest signal possible.

---

Key Features

SSL Compressor Models

• E-Series (4000E) - Transparent compression with linear ratio and minimal coloration. Perfect for mastering and mix bus glue.
• G-Series Bus (4000G) - Classic punchy SSL bus compression with slightly colored harmonics, ideal for mix buses and drum groups.
• G+ (Later Revision) - Aggressive, modern compression with fastest attack and richest harmonic color for contemporary mixes.

Advanced Compression Engine

• True RMS Detection - Sliding 512-sample window for accurate signal tracking.
• 14 Ratio Options - From gentle 1:1 to extreme ∞:1 limiting: 1:1, 1.5:1, 2:1, 3:1, 4:1, 6:1, 8:1, 10:1, 15:1, 20:1, 30:1, 50:1, 100:1, INF:1.
• Precision Controls - Threshold: -96dB to 0dB (0.1dB steps) | Makeup: 0-24dB (0.1dB steps).
• Profile-Specific Attack/Release - Timing curves automatically adapt to selected SSL profile (E/G/G+).
• Auto Release - Program-dependent release adapts dynamically (10ms-2000ms) for natural breathing.
• Fine-Tune Mode - Shift + drag Attack/Release for ultra-precise control (0.1ms - 30 seconds).
• Direct Value Entry - Shift + double-click on Attack, Release, Threshold, Makeup, HPF, or LPF to type exact values.
• Hold Time Control - 0-1000ms hold prevents premature release during transients, maintaining punch and sustain.
• Soft Knee Compression - Profile-specific knee amounts (E: 3dB, G: 5dB, G+: 2dB) for smooth, natural transitions.
• Loop-Safe Processing - Intelligent state management prevents clicks/pops during DAW transport changes and looping.

Sidechain Processing

• Surgical Precision Filters - 1Hz resolution across 0Hz-20kHz.
• Dual Filter Architecture - Independent HPF and LPF with 4x internal oversampling.
• Linear Phase Mode - FIR-based filtering for zero phase distortion in detection path.
• External Sidechain Input - Route external audio for ducking, de-essing, or creative gating effects.
• Intelligent Sidechain Switching - Smooth transitions with grace period to prevent abrupt compression changes.

Harmonic Saturation

• Odd Harmonics - Warm, tube-style character with asymmetric clipping.
• Even Harmonics - Smooth, tape-style analog warmth with symmetric saturation.
• Mixed Mode - Complex harmonic blend for rich, three-dimensional coloration.
• Profile-Matched Drive - Saturation amount automatically scales with SSL profile (E: subtle, G: moderate, G+: aggressive).
• Up to 16x Oversampling - Eliminates aliasing artifacts for pristine harmonic generation.

Total Harmonic Drive (THD)

• Dynamic Saturation - 128-point transfer curve adds harmonics based on signal level (0-200% drive range).
• Dual-Stage Character - Pre/post EQ shelving for subtle warmth at low levels, aggressive edge at high levels.
• Profile-Specific Curves - E-Series: clean warmth (0.5x), G-Series: punchy midrange (0.8x), G+: aggressive saturation (1.2x).
• 4x Internal Oversampling - Dedicated oversampler prevents intermodulation distortion.
• Asymmetric Processing - 30% bias adds authentic analog-style uneven harmonic behavior.

Parallel Processing

• Wet/Dry Mix - 0-100% blend for New York-style parallel compression.
• Delta Mode - Listen to compressed signal only (difference) for precision compression auditing.
• Transient Preservation - Blending maintains punch while adding density and glue.

Real-Time Metering

• Input/Output Meters - Vertical true RMS meters with precise dB readouts (-100dB to 0dB range).
• Clip Indicators - 300ms hold visual warning for 0dBFS peaks with flash animation.
• Gain Reduction Meter - Horizontal SSL-style meter (0-96dB range) with:
  • Asymmetric ballistics (20ms attack, adjustable release matching compressor).
  • Floating peak hold display with 1-second hold and smooth decay.
  • Precise 10dB graduation markings.
• Adaptive Level Smoothing - 100ms exponential decay prevents meter jitter.

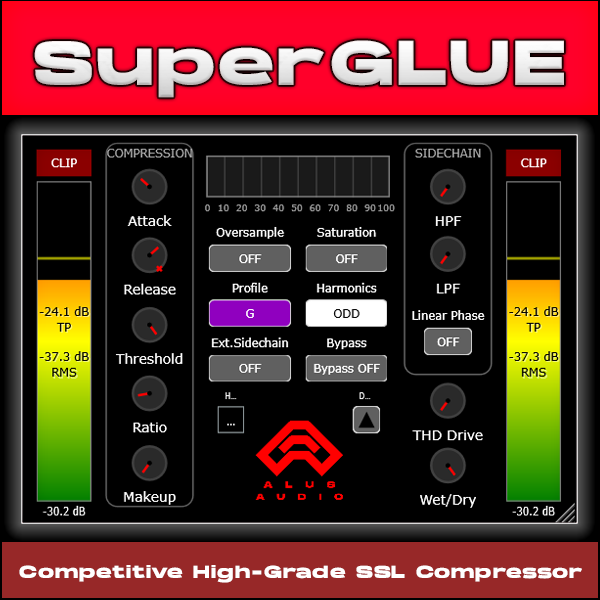

Professional Interface

• Resizable GUI
• Informative Tooltips

Intelligent DAW Integration

• Latency Compensation - Automatic PDC reporting.
• Sample-Accurate Automation - All parameters support DAW automation.

---

Technical Details

Plugin Type	VST3
Supported OS	Windows 10+
Space Required	6 MB
Version	1.3
