Sound Trajectory 3

Tripinlab's Sound Trajectory 3 gives one, the necessary tools for create content 3D audio for multi channel speaker, Dolby ATMOS or VR / AR project.

The new version of Sound Trajectory benefits from all opinions collected over the last four years since the first version was released. The interface keeps the same logic while benefiting from some ergonomic improvements. But above all, many new features are waiting for you! The audio inputs have been completely revised. Each track now has its own audio engine. It is now possible to combine multichannel, ambisonic and DBAP tracks.
For multipoint broadcasting and electroacoustic music concerts, a specific track type is now dedicated to the specific routing of loudspeaker orchestras.
A new multidelay effect now allows to create unprecedented spatialized textures, chipping away at your sounds along the paths.

Sound Trajectory works in parallel with all common DAW and their offers a powerful 3D audio capacity for studio or stage.

The semi-modular design of this software makes it easy for any user to adapt it to a 3D audio projects for create soundspace artwork for music studio, live concerts, cinema, Fulldome and VR.

Sound Trajectory Modules and Features:

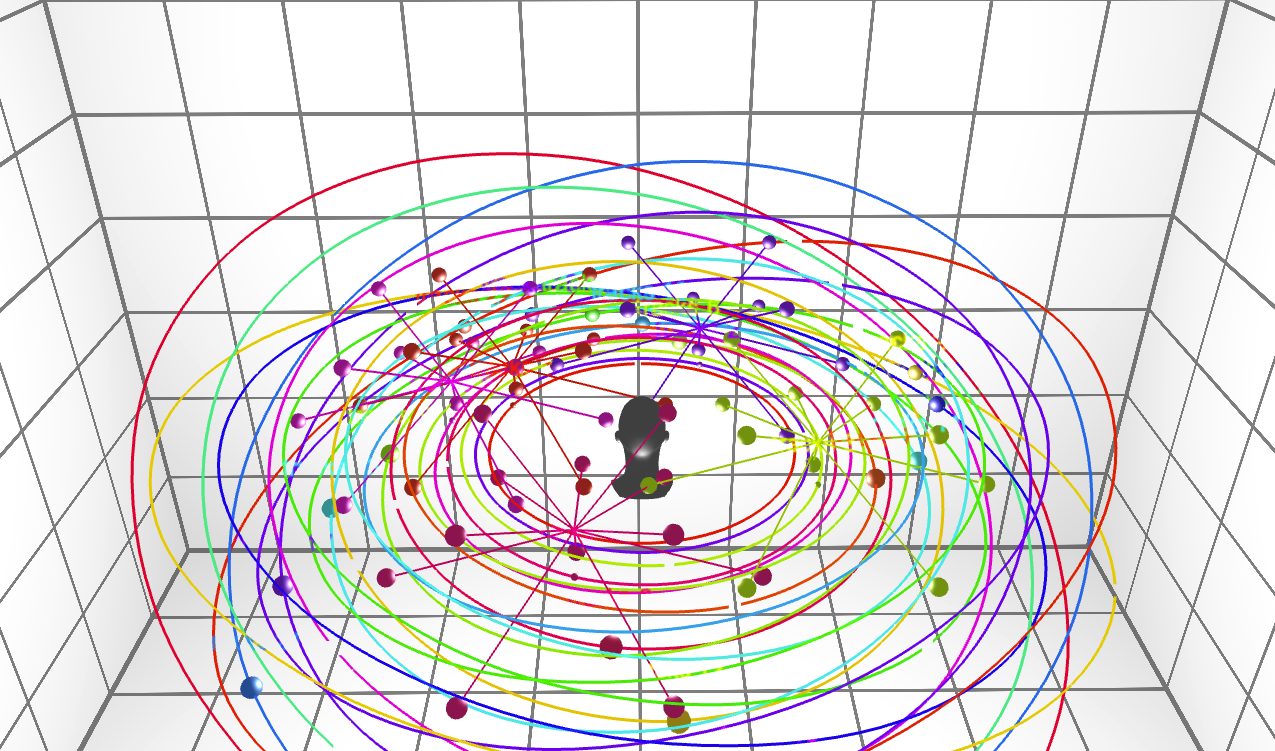

Trajectories Manage the positions of your sound sources by drawing their path in a 3D space.

Sampler The sampler plays the audio samples along the trajectories, with 128 polyphonic voices.

Mixing up to 128 tracks with trajectories. Each track can support unlimited input sources.

Motion Listener The listener (head) can be set to track a defined trajectory path, a custom path set via user applied coordinates, or be moved freely in the virtual space during live use/performance.

Master from mono to 512 speakers.

Video monitor inside 3d virtual space.

Use OSC protocol I/O to control Sound Trajectory from another software or to control other software remotely.

Use MIDI protocol with 14 bit pitch-bend to control the trajectories motion.

A session can have as many scenes as you want. Each scene allows you to instantly store and recall all the parameters that you have edited or modified.

Use VST plugins with the Ambisonic auxiliary output in SN3D (ambiX).

Keys features of version 3

Up to 128 trajectories with an unlimited number of sources.

Ambisonic audio rendering up to 11th order.

Ambisonic output bus up to 7th order (compatible with IEM or Sparta plug-ins).

Full ADM-OSC compatibility, including all parameters needed to control other spatialization software.

New FX implementation.

What's New

Navigation.

Full 3D spatial navigation: sound sources can now be placed beyond the central area of the scene and positioned on the 2D virtual map.

Track Mixing.

Simplified editing mode for each track, with a lock function and ADM-OSC support.

Session.

New session management with a Cue-list system for saving parameters.

Track Macros.

Macros can be used to assign audio descriptors (amplitude and spectral analysis) to control parameters for each track. For instance, an envelope follower can move a sound source along a trajectory, while spectral brightness can adjust its elevation.

Visible Track Manager
Matrix Tracks.

Design audio input sources and automatically assign OSC addresses.

Multidelay.

Multidelay tracks for a wide range of time-based effects, with transposition of each voice (up to 64) distributed along a chosen trajectory.

Multi-Band Filter.

Multi-band filtering for timbral spatialization or recreating Cybernephone-style sound diffusion.

ADM OSC.

Complete ADM OSC support: control Nuendo, L-isa, Holophonic, Fletcher Machine, Spat Revolution, and more.

Trajectory Collection.

A set of preconfigured trajectories is included, ready for immediate use.

Interactive Mapping.

The interactive panel has been updated to enable robust automatic mixing rules, quick MIDI mapping, and other interactive features.
