Krunx-Q

Krunx-Q is a high-precision bitcrusher and sample rate reducer built around a dual-layer FFT analysis engine that monitors both input and output signals in real time. Instead of treating digital degradation as a simple destructive effect, Krunx-Q allows users to visualize the specific spectral artifacts and aliasing generated by the processing — making it easier to sculpt digital noise, manage high-frequency content, and dial in vintage character with surgical accuracy.

"Fully coded DSP & GUI — optimized for CPU efficiency. No images, no SVGs, no skins. Pure signal."

"Download the free demo version to explore Krunx-Q and see if it fits your vibe. Your support helps drive future updates and new tools."

Demo Version Limitations:
• All saving and project recall features are disabled.
• 20-minute session limit. Simply reload (remove and re-insert) the plugin to reset the timer.

Key Features

• Engine: High-Precision Digital Bitcrusher with resolution-accurate quantization logic.

• Bit Depth Control: Stepped integer controls from 24-bit down to 2-bit.

• Rate Reduction: Independent sample-rate reduction stage for controlled digital aliasing.

• Oversampling: Selectable 1x, 2x, 4x, or 8x real-time oversampling for reduced aliasing.

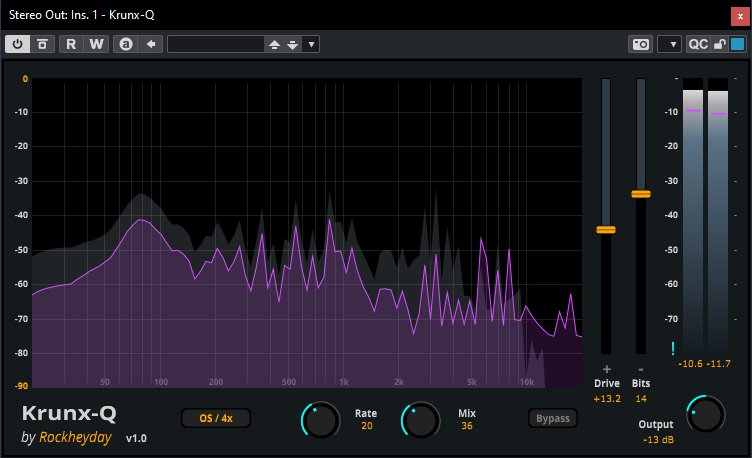

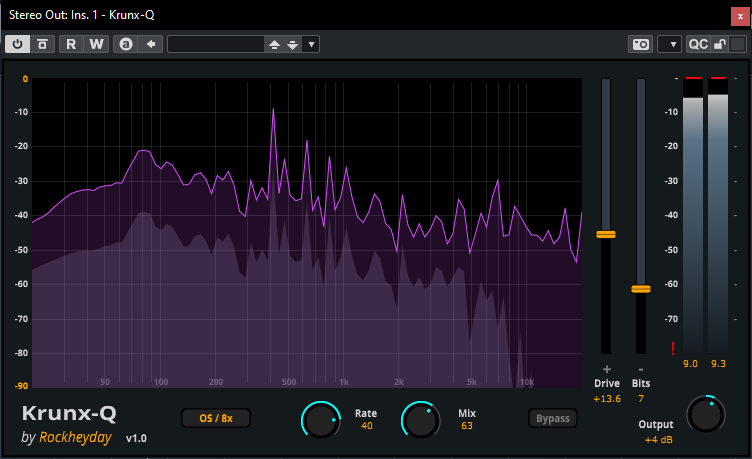

• Analyzer: Dual-Layer Input/Output FFT display for precise harmonic monitoring.

• Response Model: Internal 4.5 dB tilt and 350 ms ballistic decay.

• Gain Structure:

- Drive: 0 to +24 dB (Pre-processing).

- Output: -24 dB to +24 dB (Post-processing).

• Metering: Dual-layer LR Peak meters (background = input, foreground = output).

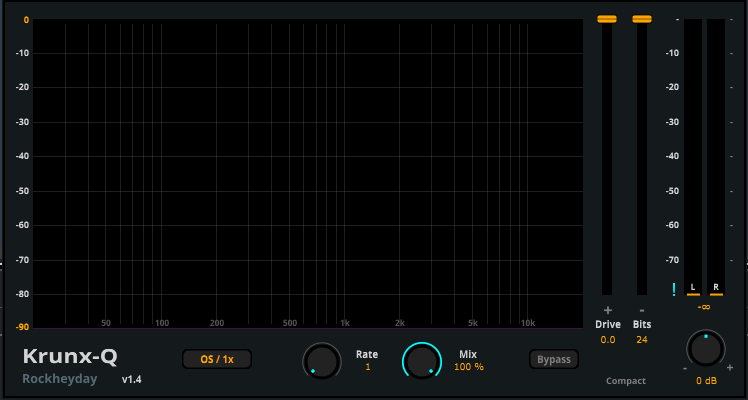

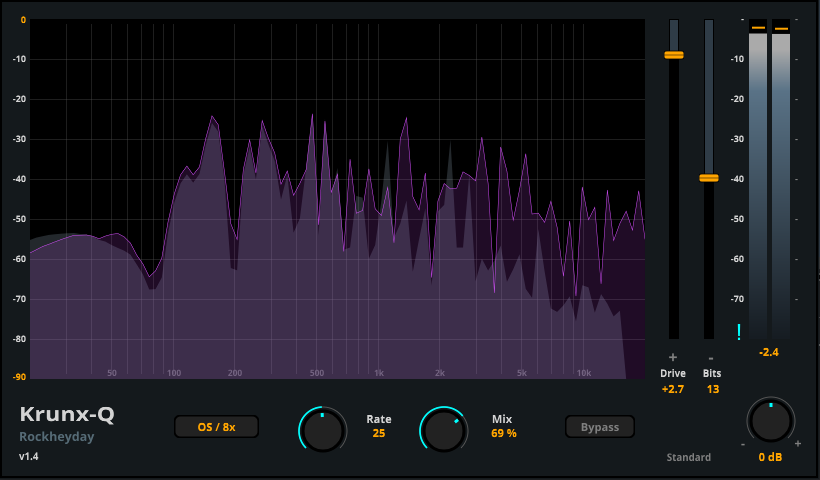

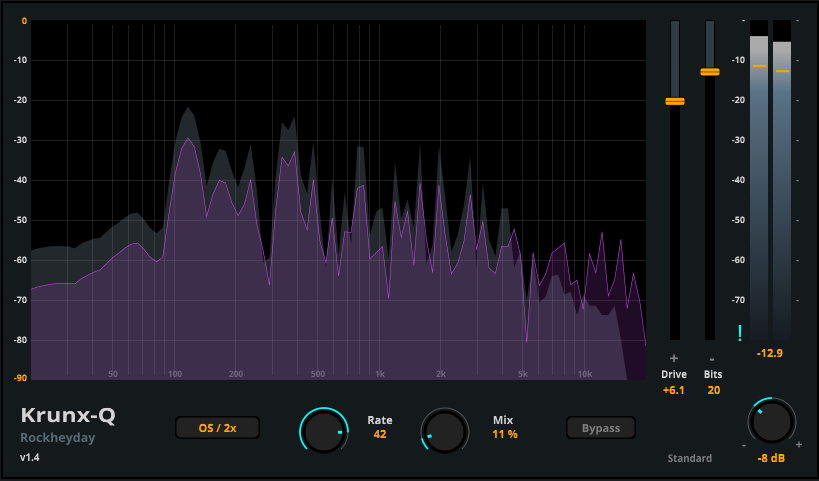

• Interface Scaling: Runtime dual-sizing layout (Standard and Compact).

• Precision: 32-bit floating-point processing.

• Sample Rates: Multi-rate support (44.1 kHz - 96 kHz), dynamically matching host DAW settings.

CPU-Efficient Processing

The DSP and GUI are written entirely in code—free of heavy images, SVGs, or skins. By eliminating graphic overhead at the source, this lightweight architecture ensures stable, low-latency processing that remains highly CPU-efficient, even under heavy analysis or at high sample rates.

Version History

v1.4 - July 2026
• Added Standard and Compact size modes.
• Improved knob precision and control response for mouse wheel and drag adjustments.
• Improved stability under variable buffer sizes and dynamic channel layouts.
• Optimized the visualizer data-path for improved real-time safety.

v1.3 – June 2026
• Optimized spectrum processing and peak meter performance.
• Minor UI refinements for improved visual consistency.

v1.2 – May 2026
• Aligned the behaviour of the spectrum display and dual peak meters when bypassed.
• Improved dual-layer spectrum resolution and standalone UI performance.

v1.1 – February 2026
• Disabled standalone native title bar maximize button to prevent UI layout issues.
• Improved standalone stability by disabling multi-instance mode to prevent potential launch conflicts.
• Added double click support on knobs to restore default values.

v1.0 – Initial Release
• First public release of Krunx-Q.
