Shine 4

Shine 4 is a high-resolution harmonic exciter engineered for controlled spectral enhancement and precise harmonic generation. Featuring targeted excitation via stepped frequency control and four unique Exciter models, it allows you to move beyond broad brightness to achieve both subtle clarity improvements and deliberate tonal coloration. Real-time dual-layer FFT analysis ensures you can monitor exactly how the harmonics and levels change, maintaining complete accuracy while shaping your signal.

"Fully coded DSP & GUI — no images, no SVGs, no skins. Pure signal."

Key Features

• Engine: High-Resolution Digital Exciter with Selectable Non-Linear Harmonic Generation.

• Frequency Control: Stepped integer controls from 12 kHz down to 1000 Hz.

• Exciter Types: Silk, Tube, Tape, Sparkle.

• Tone Mode: Neutral, Dark, Bright.

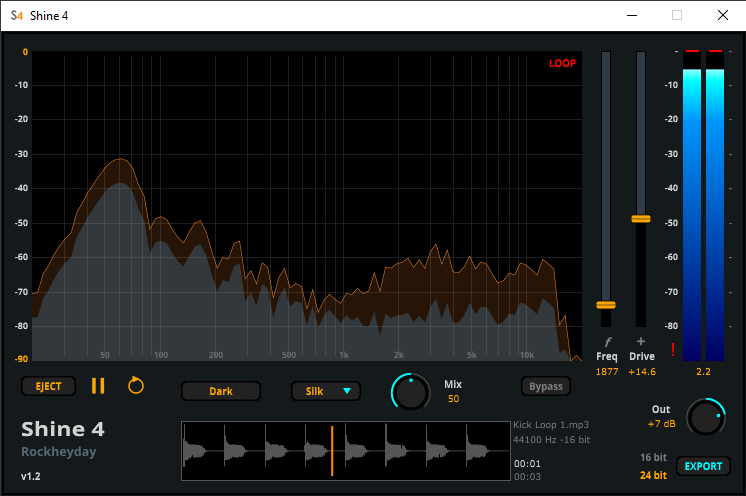

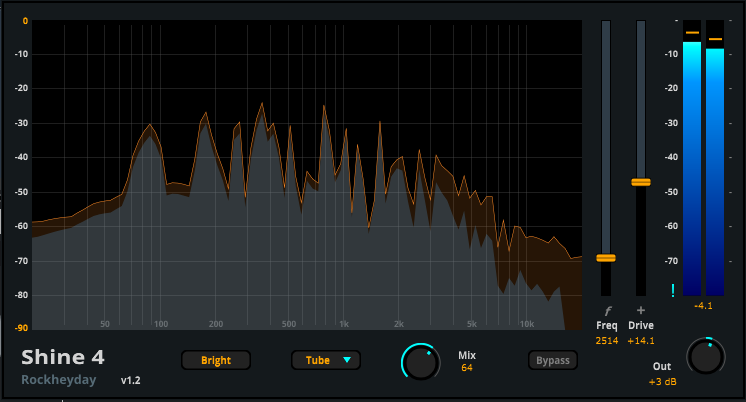

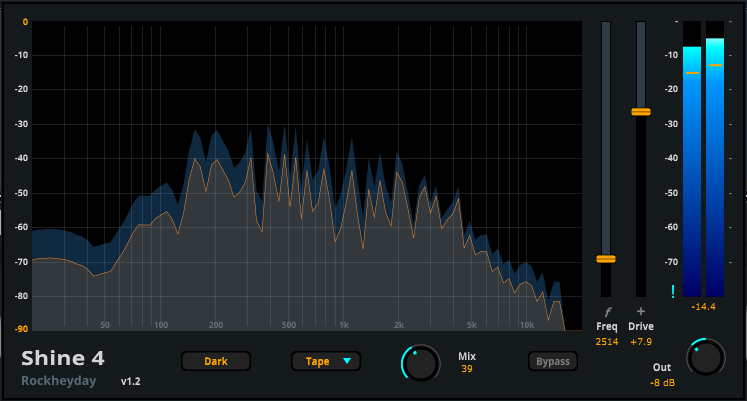

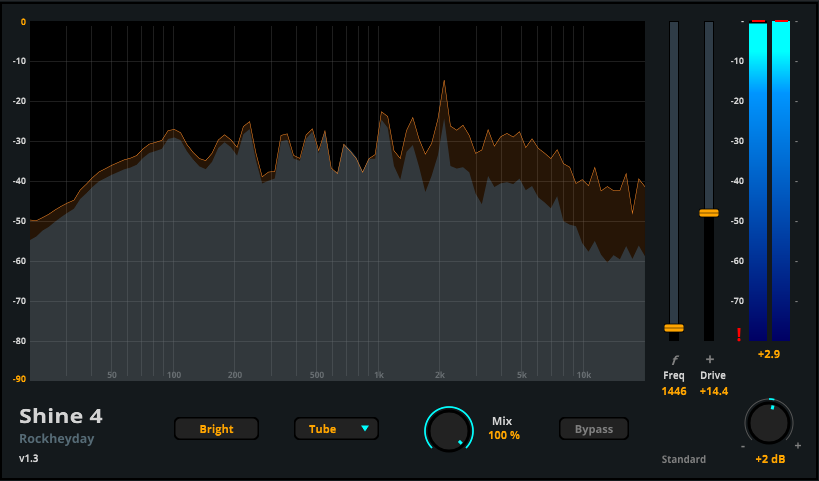

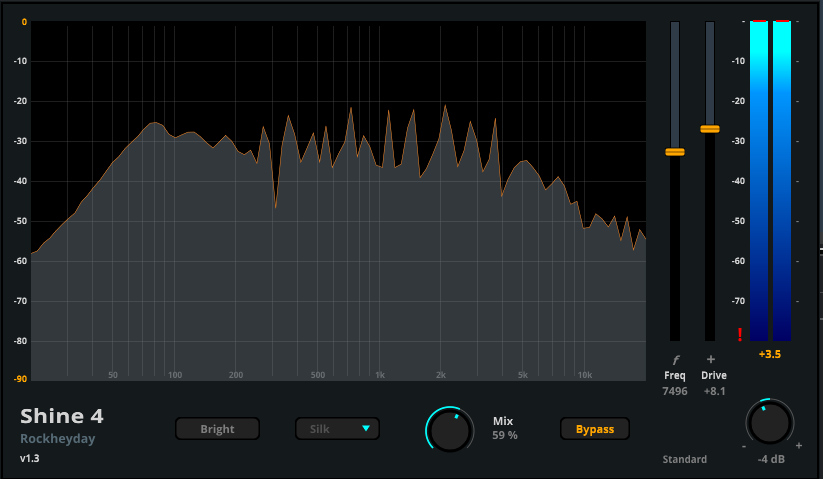

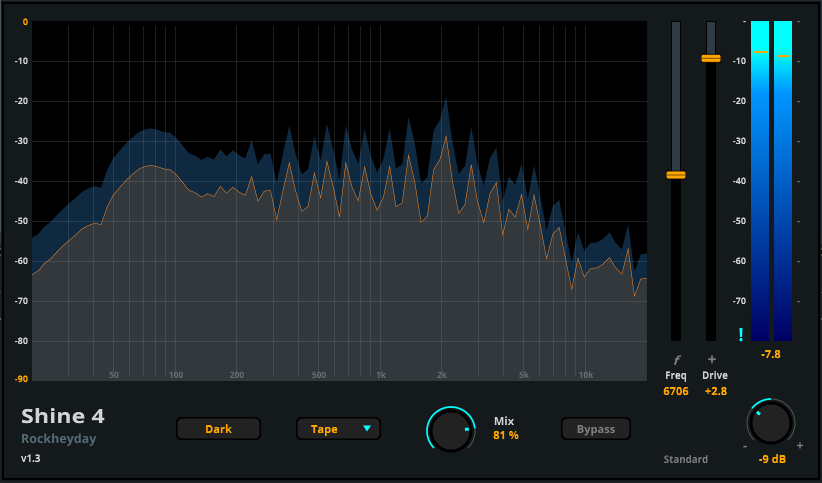

• Analyzer: Dual-Layer Input/Output FFT display for precise harmonic monitoring.

• Analysis & Metering Response: Internal 4.5 dB tilt and 350 ms ballistic decay.

• Gain Structure:

- Drive: 0 dB to +24 dB (Pre-processing).

- Output : -12 dB to +12 dB (Post-processing).

• Metering: Dual-layer LR Peak meters (background = input, foreground = output).

• Precision: 32-bit floating-point internal processing.

• Sample Rates: 44.1 - 96 kHz (Standalone), Host-Dependent in VST3.

Standalone-Only Features

• Playback: Drag & Drop loading with Loop functionality.

• Export: Render processed audio to WAV (16-bit or 24-bit).

Version History

v1.2 - May 2026
• Optimized spectrum processing performance.
• Optimized peak meter performance.
• Minor UI refinements for improved visual consistency.

v1.1 - April 2026
• Improved harmonic generation engine stability and quality
• Improved spectrum architecture (clean DSP UI separation)
• Improved dual-layer spectrum system (Dry / Wet signal paths)
• Optimized real-time FFT processing and smoothing pipeline.

v1.0 – Initial Release
• First public release of Shine 4.
